NOTICE
 The Rack BMS configuration cable, System BMS configuration cable and Ethernet cable must be
made by the customer or installer according to the following PIN map.

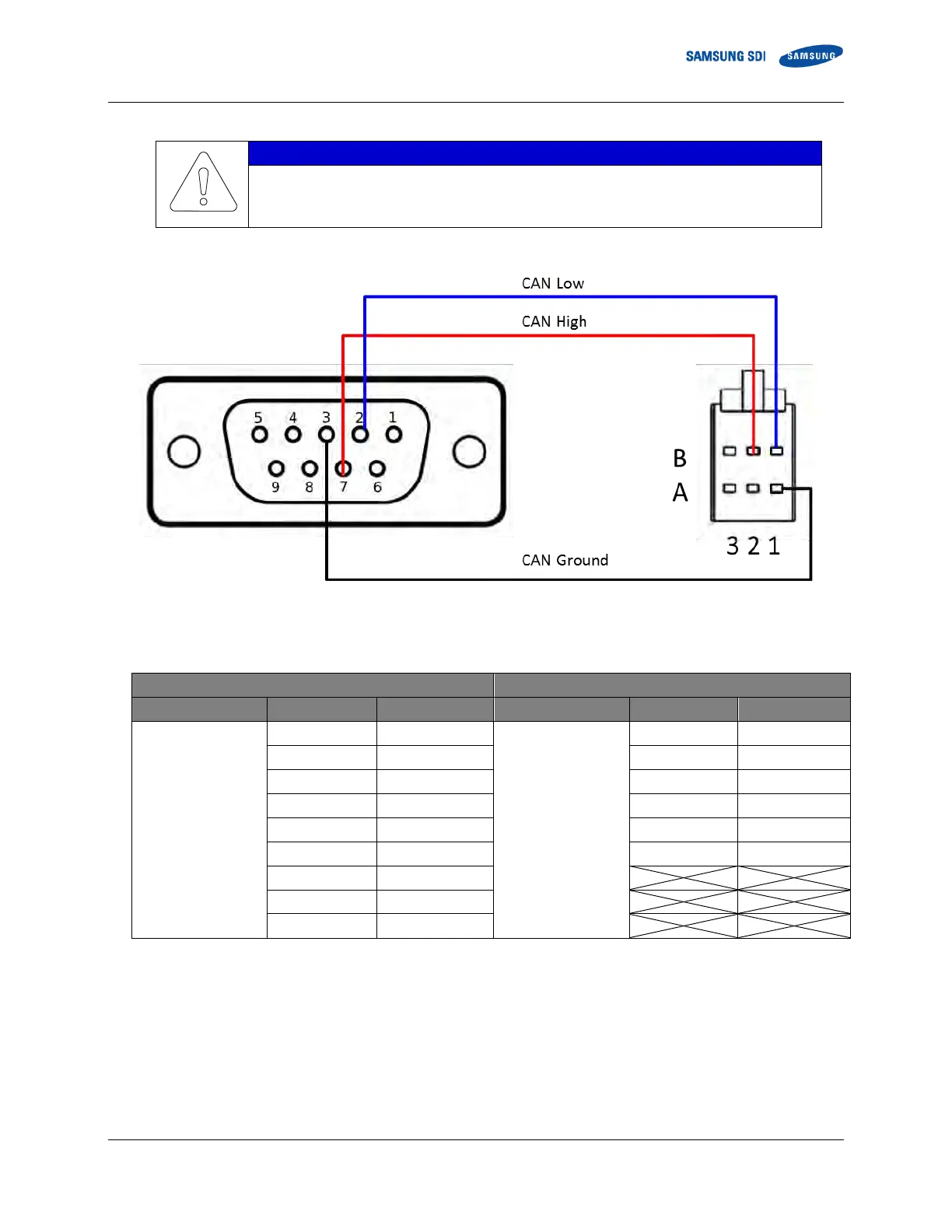

Figure 3-130: Rack BMS Configuration Cable Pin Map
Table 3-11: Rack BMS Configuration Cable Pin Map
Connection A
Connection B
Connector
Pin No.
Signal
Connector
Pin No.
Signal
D-SUB (Female)
1
-
J21SF-06V-KX-L
1A
GND Ground
2
CAN Low
2A
-
3
CAN Ground
3A
-
4
-
1B
CAN Low
5
-
2B
CAN High
6
-
3B
-
7
CAN High
8
-
9
-
