Confidential 3. Installing the Product
English 8/2019. Rev 0.0 73
26. Reattach Battery Module #11’s front cover and remove Battery Module #13’s front cover.

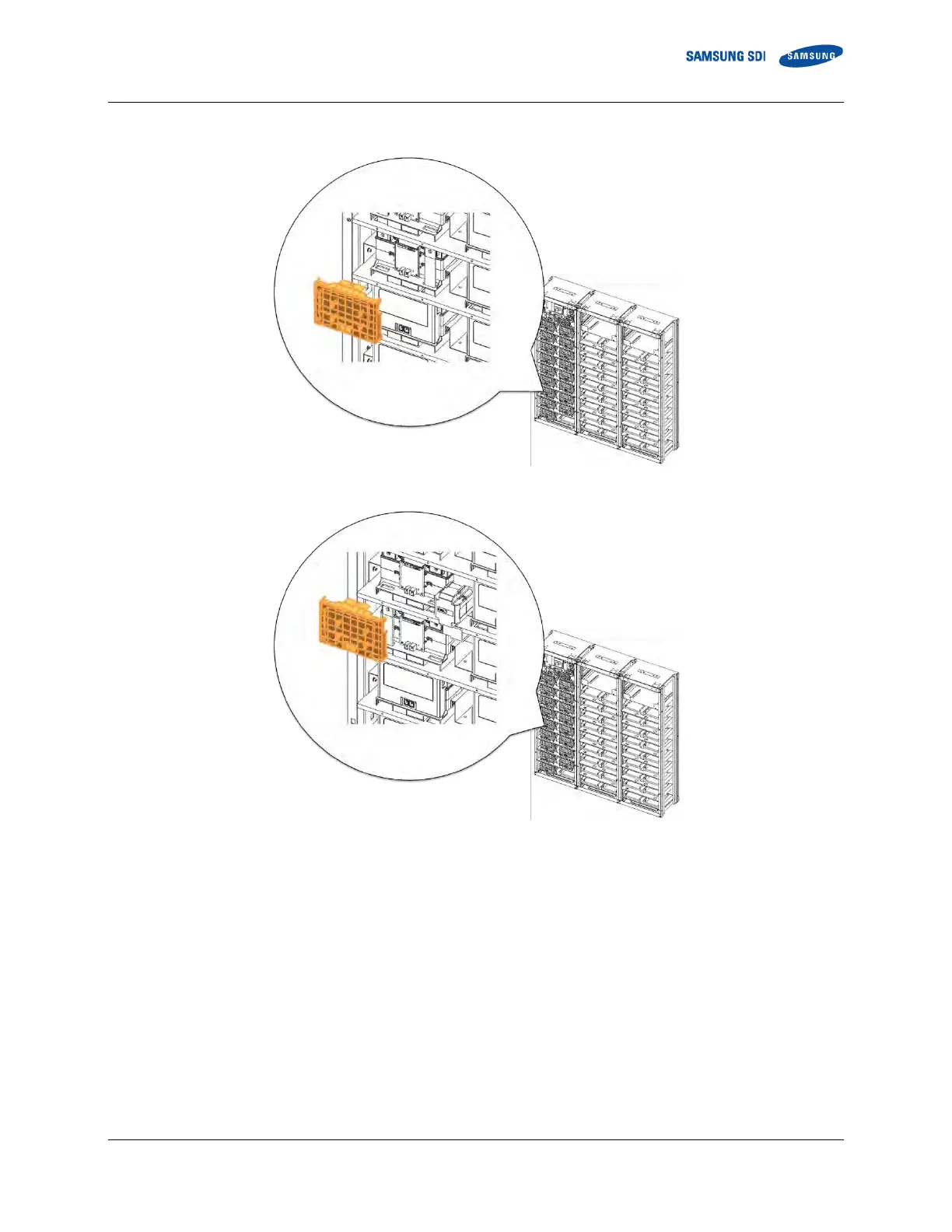

Figure 3-71: Reattach Module #11’s Front Cover
Figure 3-72: Remove Module #13’s Front Cover
