3. Installing the Product Confidential
36 English 8/2019. Rev 0.0

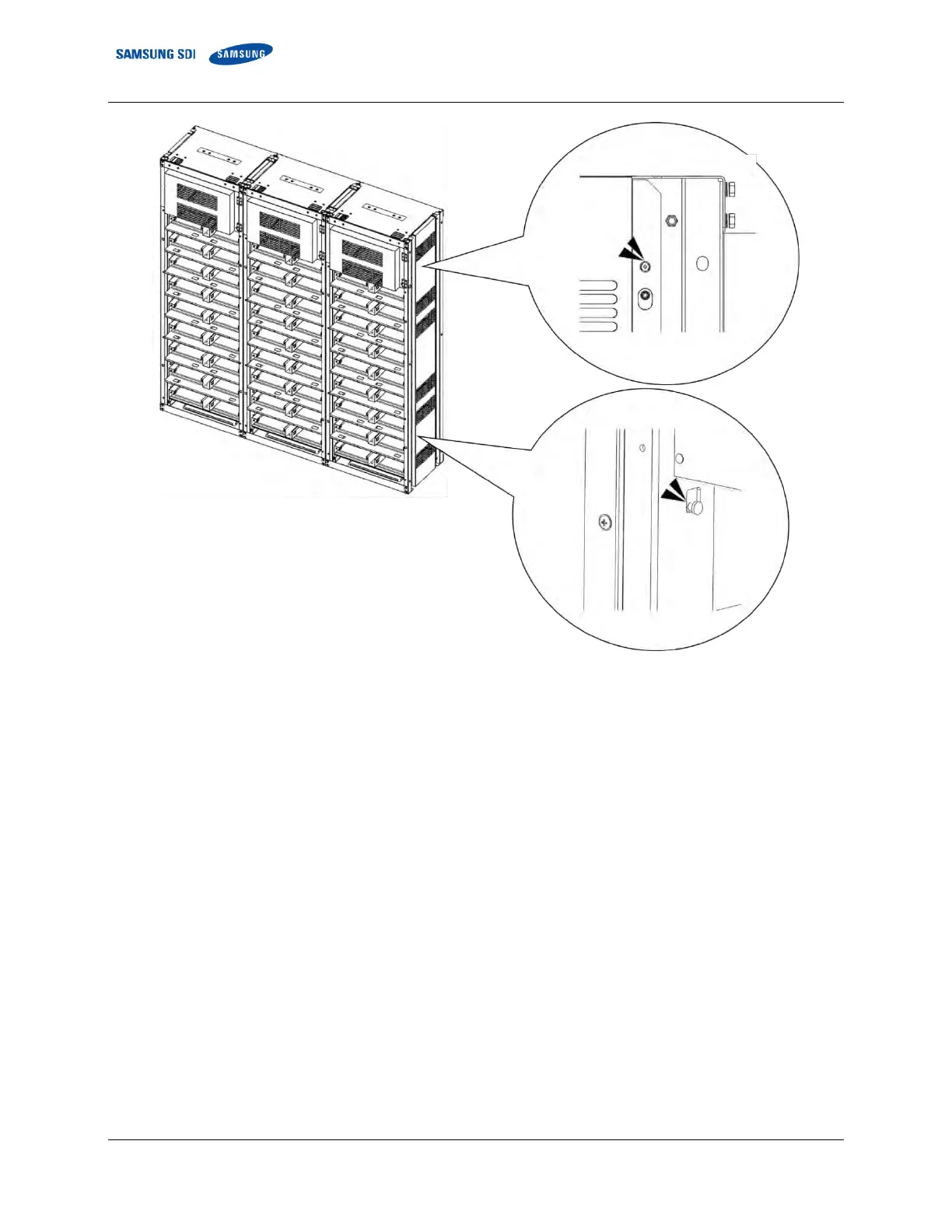

Figure 3-13: Reattaching the Side Panels (four hooks and six screws for each panel)
7. Reattach the rear panels to the rack frames using the provided M5 Screws for each rear panel. Fasten the screws using
torque of 5.1–6.1 Nm (50–60 kgf/cm). Make sure all the hooks are inserted to the slot and the panel is flush with the rack
frame before screwing.
