Confidential 3. Installing the Product
English 8/2019. Rev 0.0 99

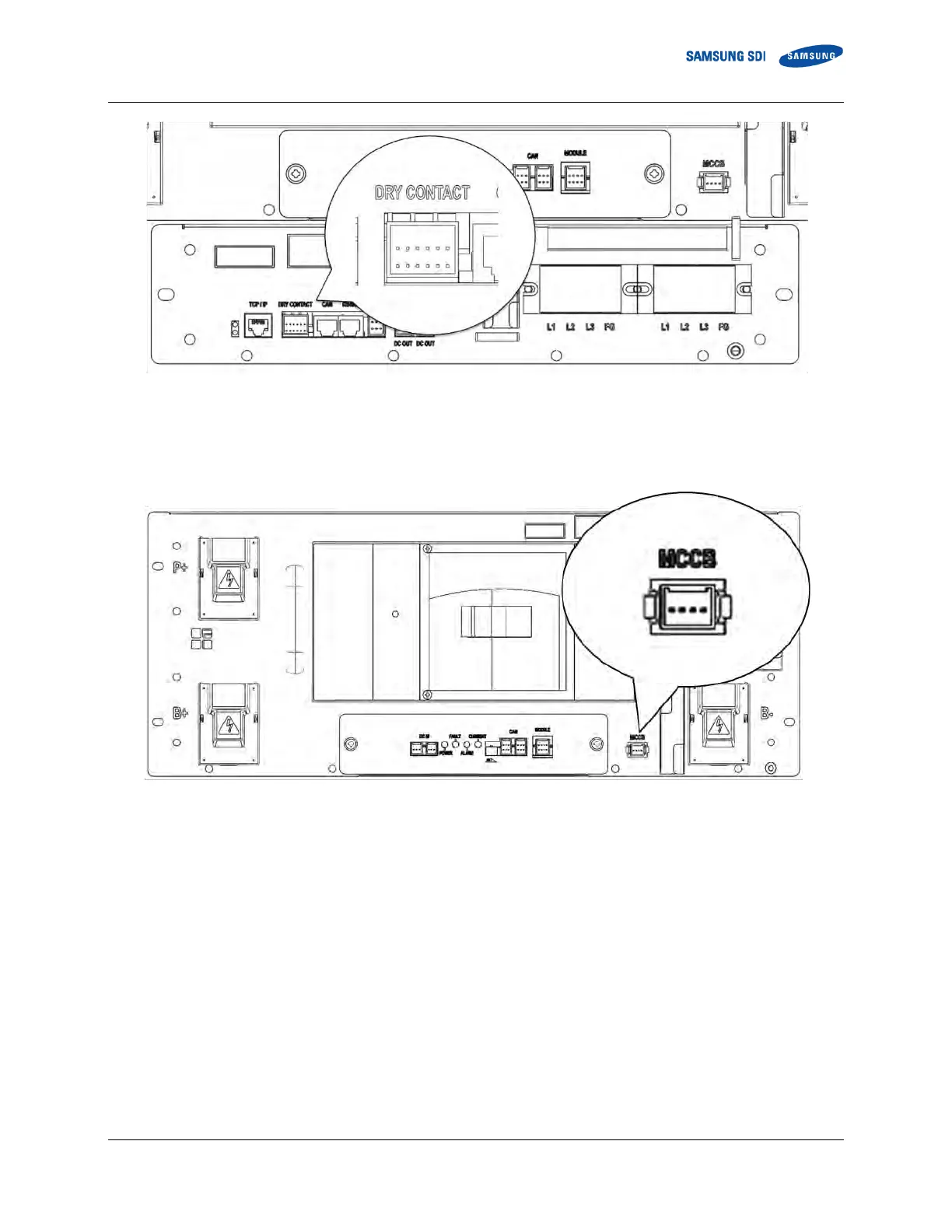

Figure 3-114: Dry Contact Cable Connection to SMPS Assembly
4. Optional: Connect the SMU MCCB Cable.
Figure 3-115: MCCB Extra Auxiliary Connection
