Samsung 136S - Figure 3-32: Fuse Busbar Left Assembly; Figure 3-33: Fuse Busbar Left Assembly (Fuse Cover)

Confidential 3. Installing the Product
English 8/2019. Rev 0.0 49
2. Assemble the Fuse Busbar Left Assembly.
Fuse Busbar Left Assembly is comprised of one “FUSE BUSBAR LEFT UPPER”, one one “FUSE BUSBAR LEFT LOWER”, two
“SCREW M12 X 16”, two “FUSE COVER #2”, and one “FUSE”

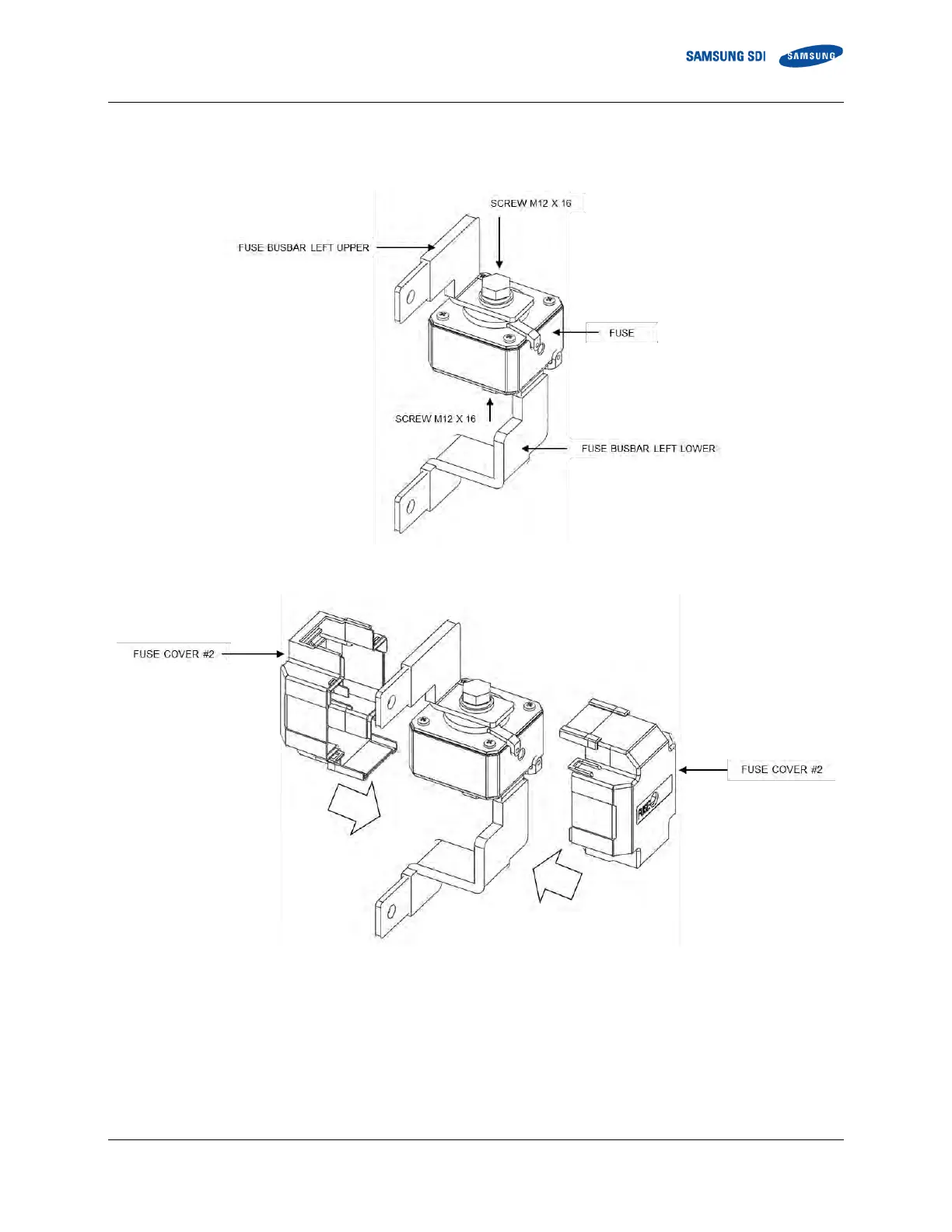

Figure 3-32: Fuse Busbar Left Assembly
Figure 3-33: Fuse Busbar Left Assembly (Fuse Cover)
