2.1.4 Rack Frame
White: V808-00066A
Black: V808-00068A
The Rack Frame is used to mount the modules, SMU and SMPS assembly and provides ground connections for SMU
and SMPS Assembly.
(Grounding cable/busbar for the rack frame is necessary for the SMU and SMPS Assembly as they are grounded to
the rack frame when installed. An equipment grounding conductor is required to ground the rack frames together
and to the UPS module).

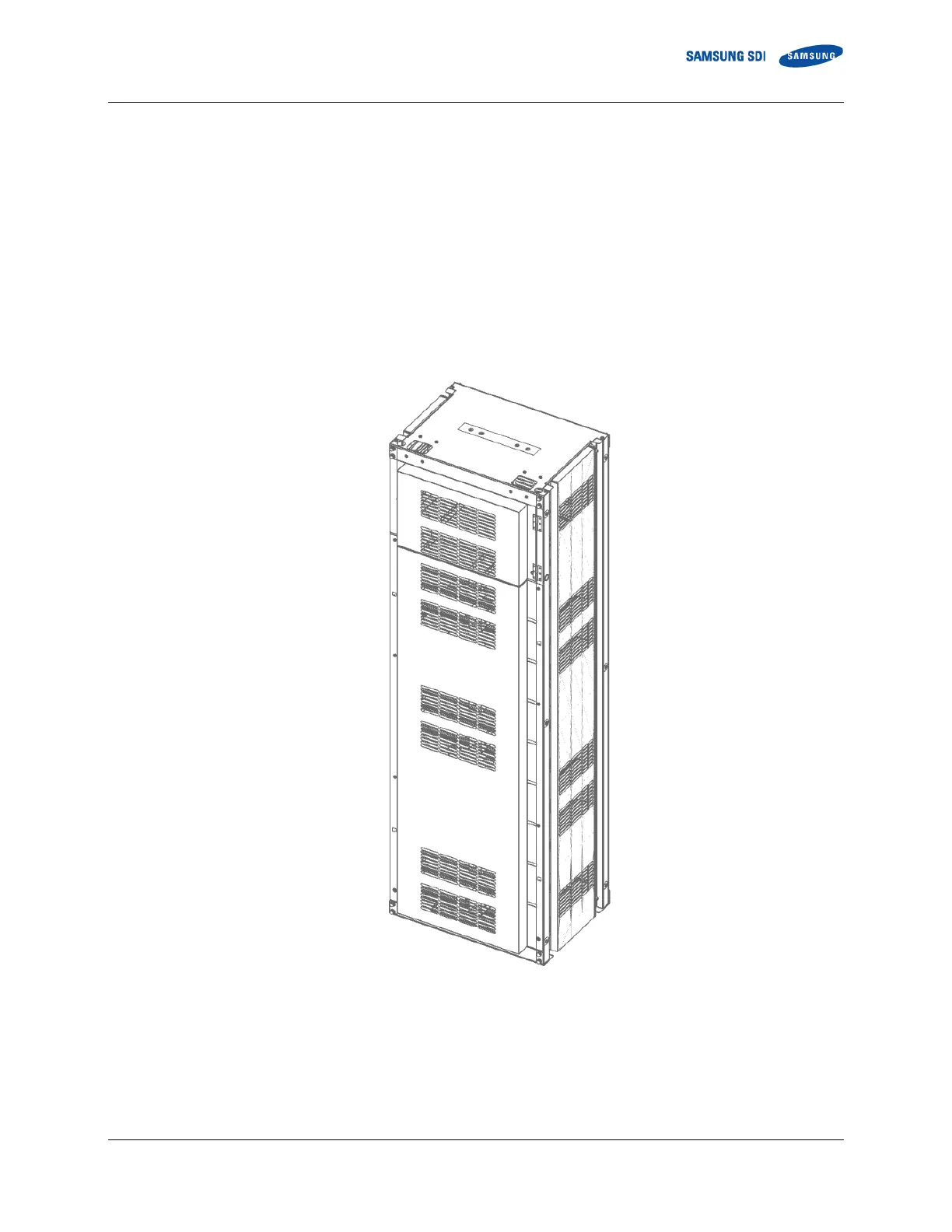

Figure 2-13: Rack Frame
