Samsung 136S - Figure 3-26: Battery Module Arrangement on the Eighth Shelf; Figure 3-27: Battery Module Arrangement

3. Installing the Product Confidential
46 English 8/2019. Rev 0.0

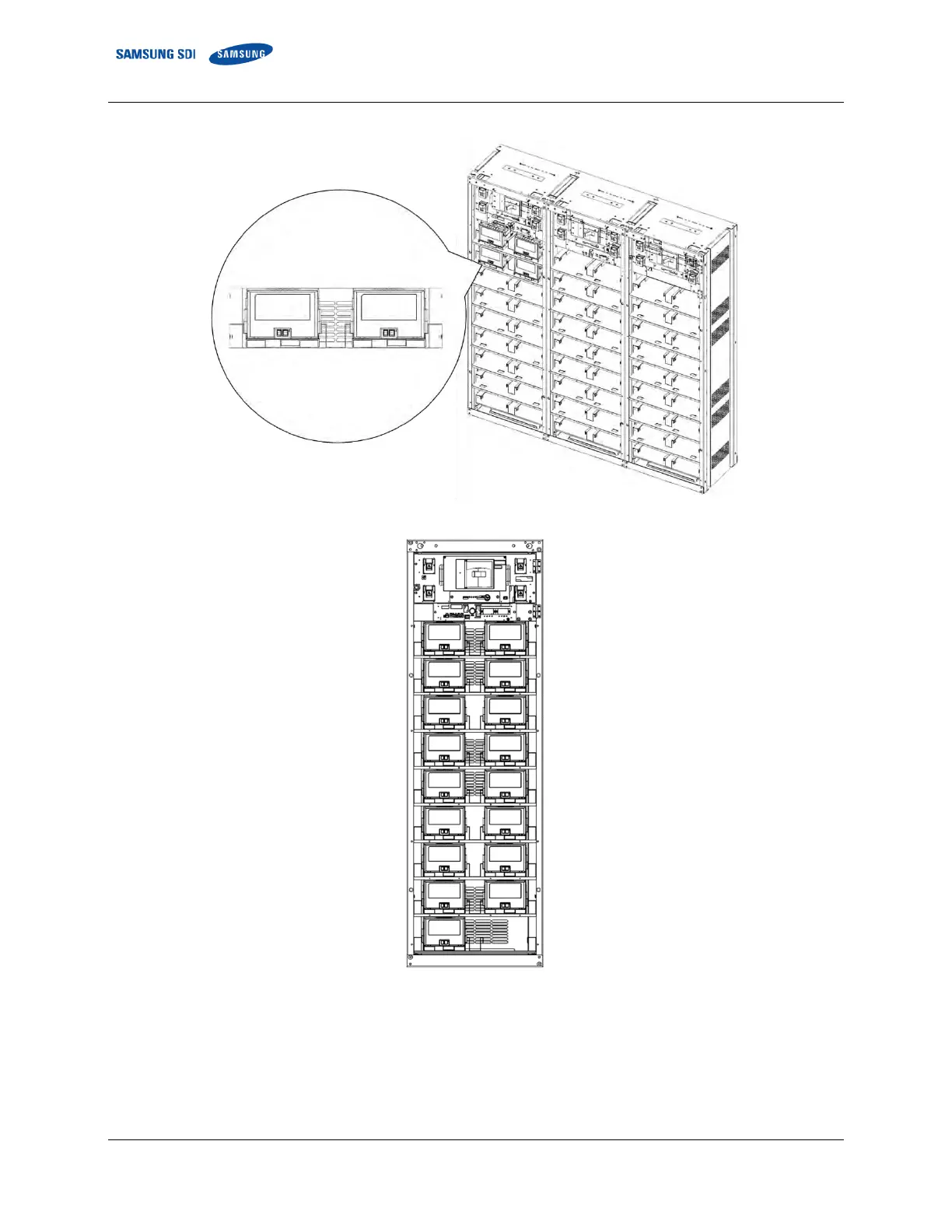

Figure 3-26: Battery Module Arrangement on the Eighth Shelf
Figure 3-27: Battery Module Arrangement
Two Type A
Battery Modules
Two Type B Battery
Modules
Two Type A Battery
Modules
Two Type B Battery
Modules
Two Type A Battery
Modules
Two Type B Battery Modules
Two Type A Battery
Modules
Two Type B Battery Modules
Two Type A Battery Modules
One Type B Battery Modules
