Confidential 2. Product Description
English 8/2019. Rev 0.0 9
Top View
Front View
COVER
OPEN
COVER
CLOSED

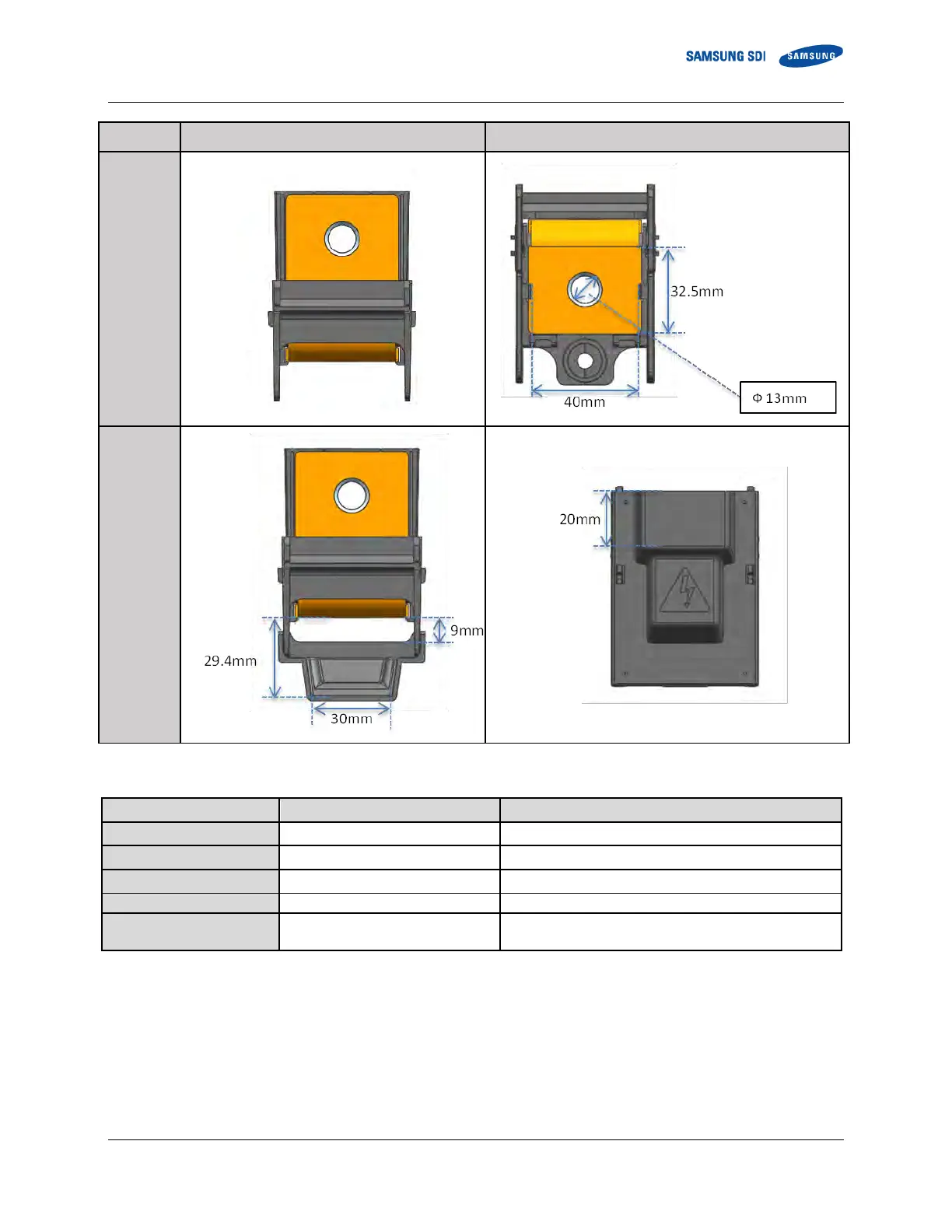

Figure 2-6: Terminal Block Front / Top View (Cover Opened/Closed)
Table 2-2: Terminal Block Description
Item
Detail
Description
Conducting Material
Cu
C1100
Insulating Material (Guide)
PA66
GF25%
Insulating Material (Cover)
PC
Conductive Area
32.5mm x 40.0mm
Rated Current
473A
Calculated in accordance with
DIN 43670 MELSON & BOTH equation
