Confidential 3. Installing the Product
English 8/2019. Rev 0.0 71

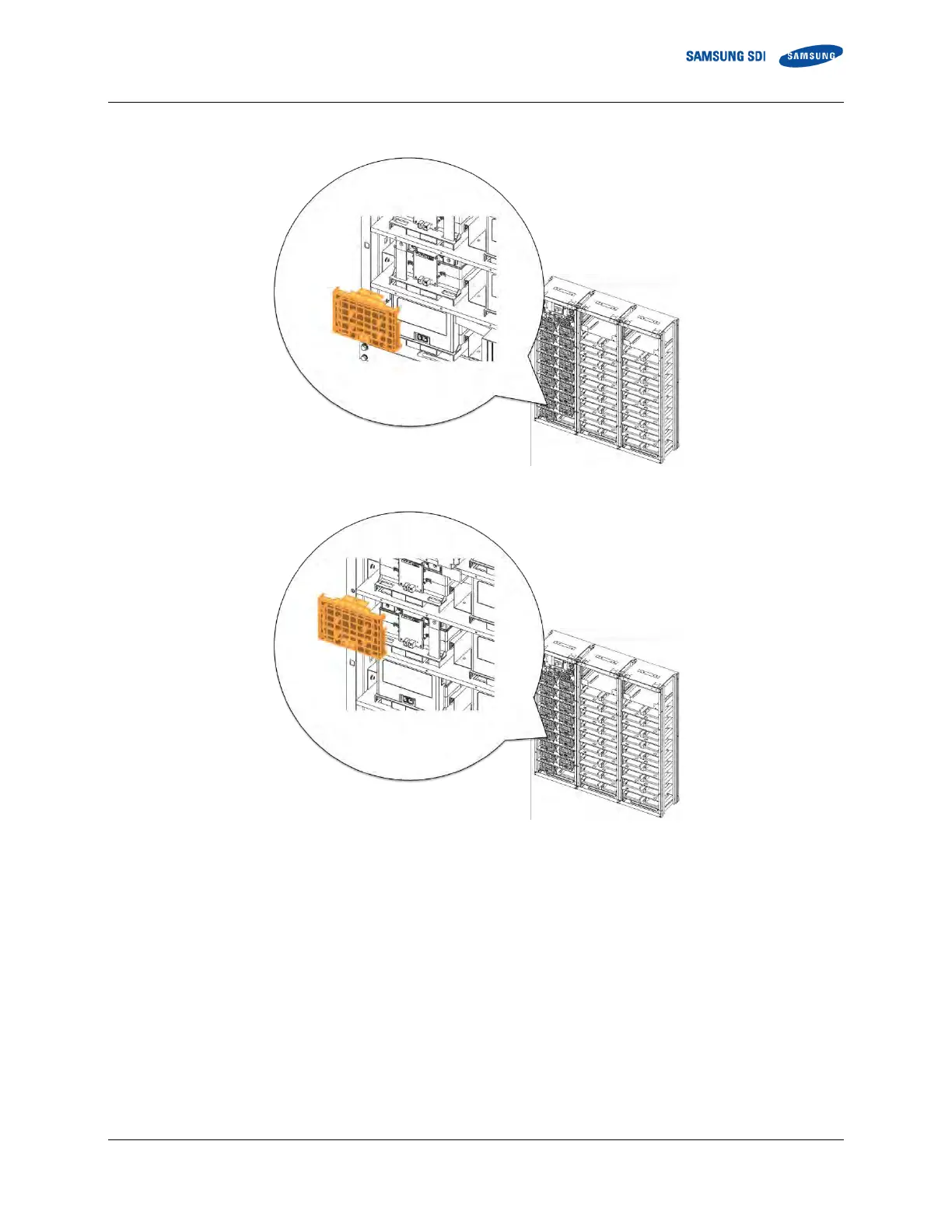

24. Reattach Battery Module #10’s front cover and remove Module #12’s front cover.
Figure 3-68: Reattach Battery Module #10’s Front Cover
Figure 3-69: Remove Battery Module #12’s Front Cover
