Samsung 136S - Figure 3-63: Remove Battery Modules #10 S Front Cover

3. Installing the Product Confidential
68 English 8/2019. Rev 0.0

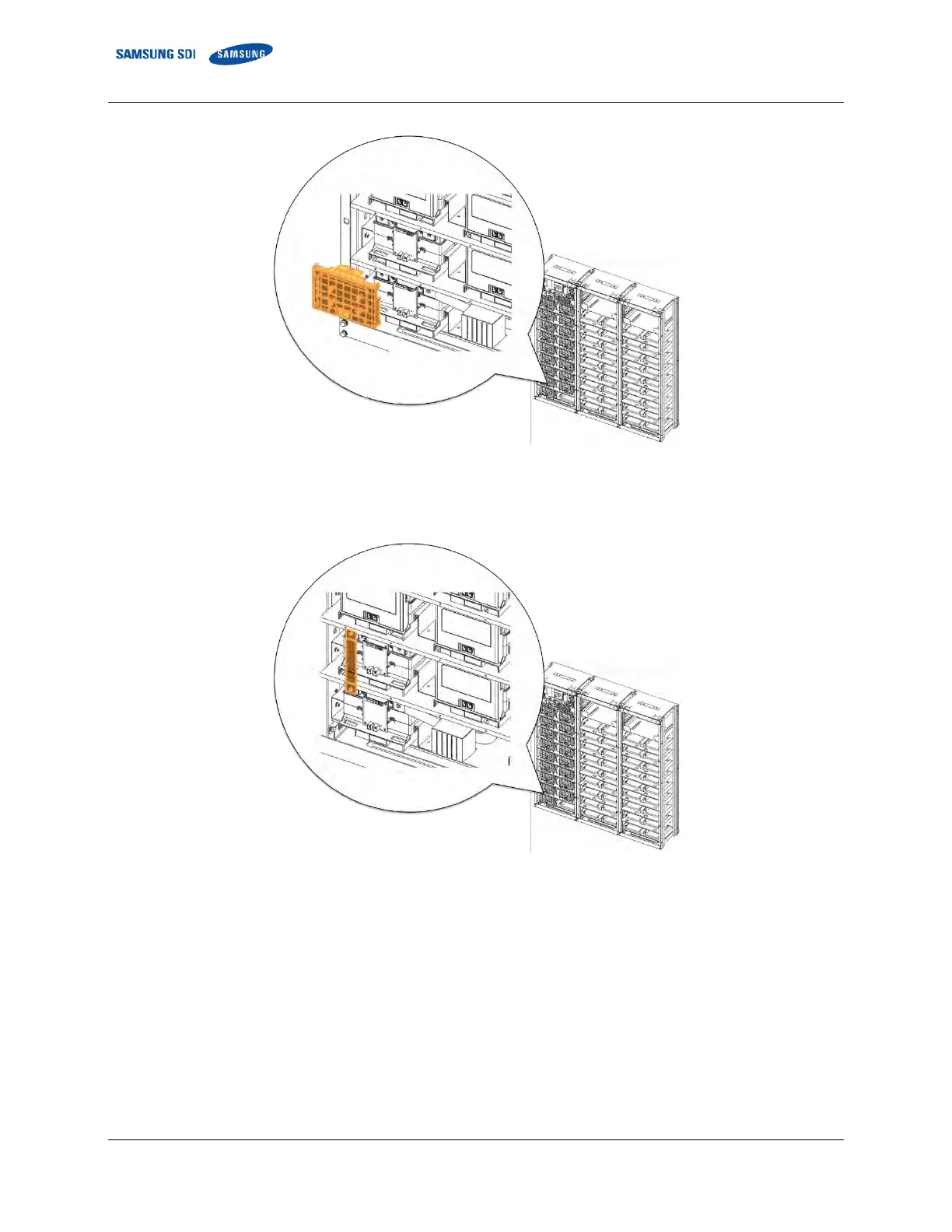

Figure 3-63: Remove Battery Modules #10’s Front Cover
21. Connect Battery Module #9 B+ and Battery Module #10 B- using “BUS-BAR MAIN” Connect using an M8 screw.
Figure 3-64 Connect Battery Module #9 B+ and Battery Module #10 B-.
22. Reattach Battery Module #9’s front cover and remove Battery Module #11’s front cover.
