Samsung 136S - Figure 3-36: Removing the Module #1 S Cover and SMU B- Terminal Cover; Figure 3-37: Connect SMU B- and Module #1 B

3. Installing the Product Confidential
52 English 8/2019. Rev 0.0
1. Remove Battery Module #1’s front cover and the SMU B- terminal cover.

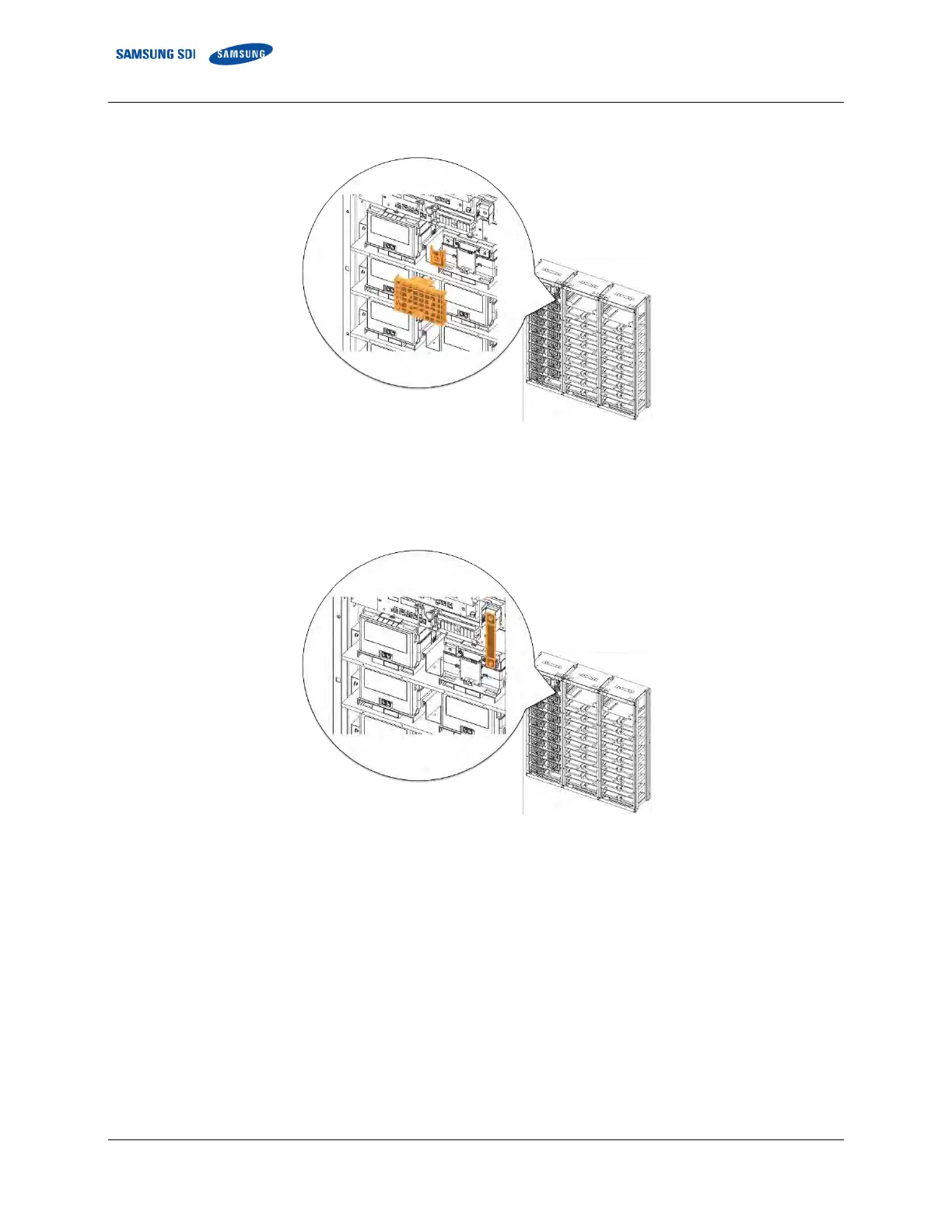

Figure 3-36: Removing the Module #1’s Cover and SMU B- Terminal Cover
2. Connect SMU B- and Module #1 B- using “BUSBAR M TO SMU.” SMU B- terminal is connected using an M12 screw and
Battery Module #1 B- terminal is connected using an M8 screw.
Figure 3-37: Connect SMU B- and Module #1 B-
