Samsung 136S - Figure 3-58: Connect Battery Module #7 B+ and Battery Module #8 B

Confidential 3. Installing the Product
English 8/2019. Rev 0.0 65
17. Connect Battery Module #7 B+ and Battery Module #8 B- using “BUS-BAR MAIN.” Connect using an M8 screw.

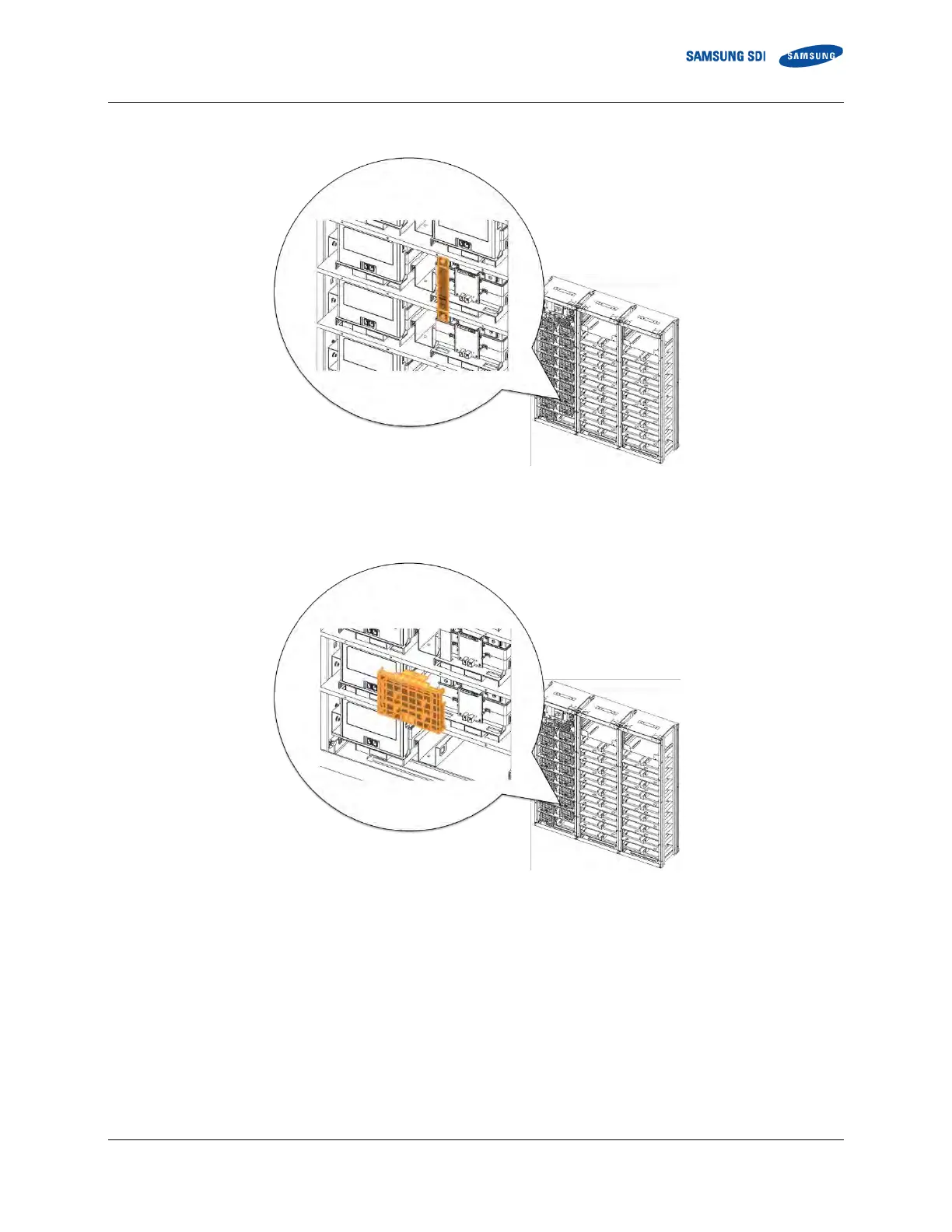

Figure 3-58: Connect Battery Module #7 B+ and Battery Module #8 B-
18. Reattach Battery Modules #7’s front cover and remove Battery Modules #9’s front cover.
Figure 3-59: Reattach Battery Modules #7’s Front Cover
