3. Installing the Product Confidential
50 English 8/2019. Rev 0.0
3. Assemble the Fuse Busbar Right Assembly.
Fuse Busbar Right Assembly is comprised of one “FUSE BUSBAR RIGHT UPPER”, one one “FUSE BUSBAR RIGHT LOWER”, two
“SCREW M12 X 16”, two “FUSE COVER #2”, and one “FUSE”

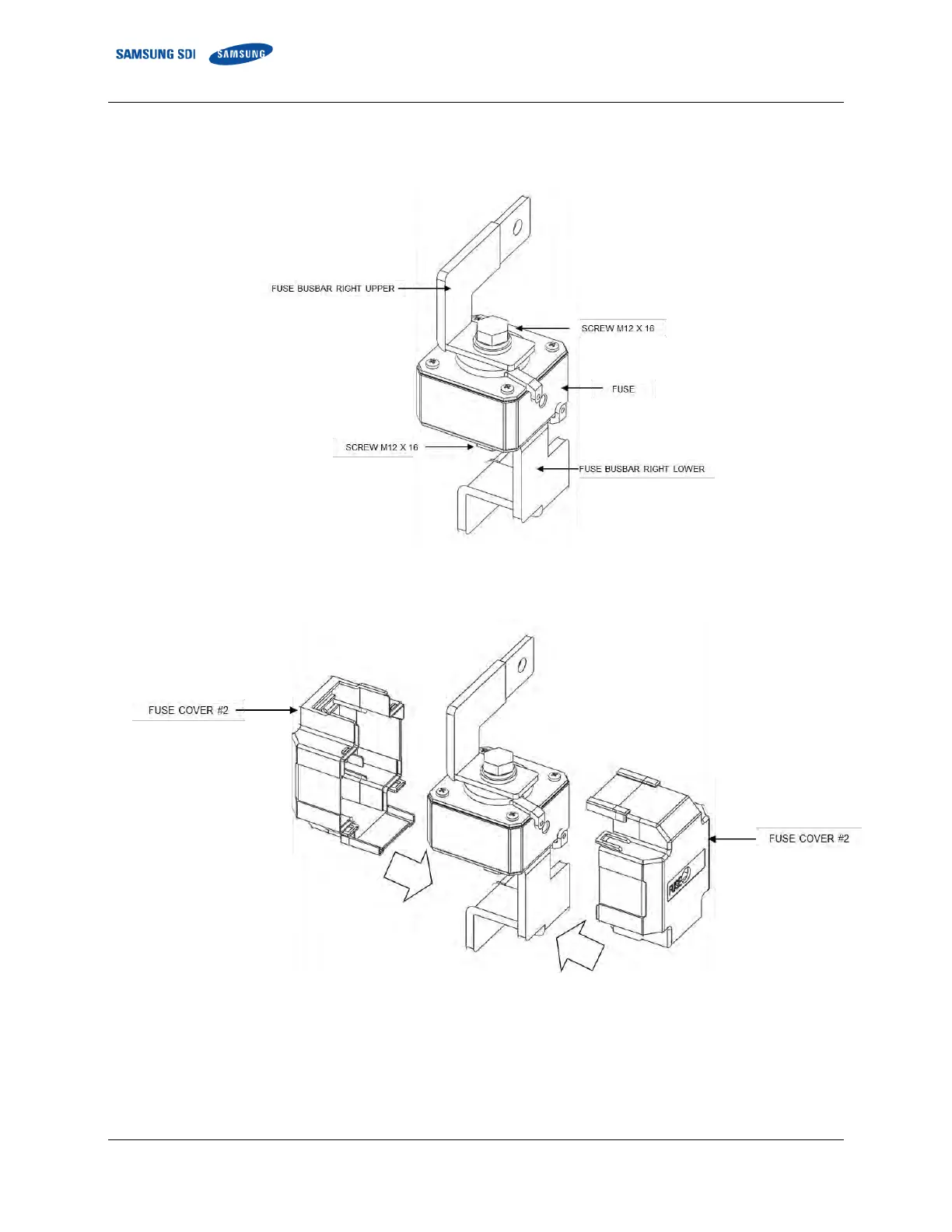

Figure 3-34: Fuse Busbar Right Assembly
Figure 3-35: Fuse Busbar Right Assembly (Fuse Cover)
