SatLab SLT2 - Reflector and Prism Constant Setup

Total Station Manual
-
27
-
refer to “Technical Parameters”.
Steps
Key
Display
○

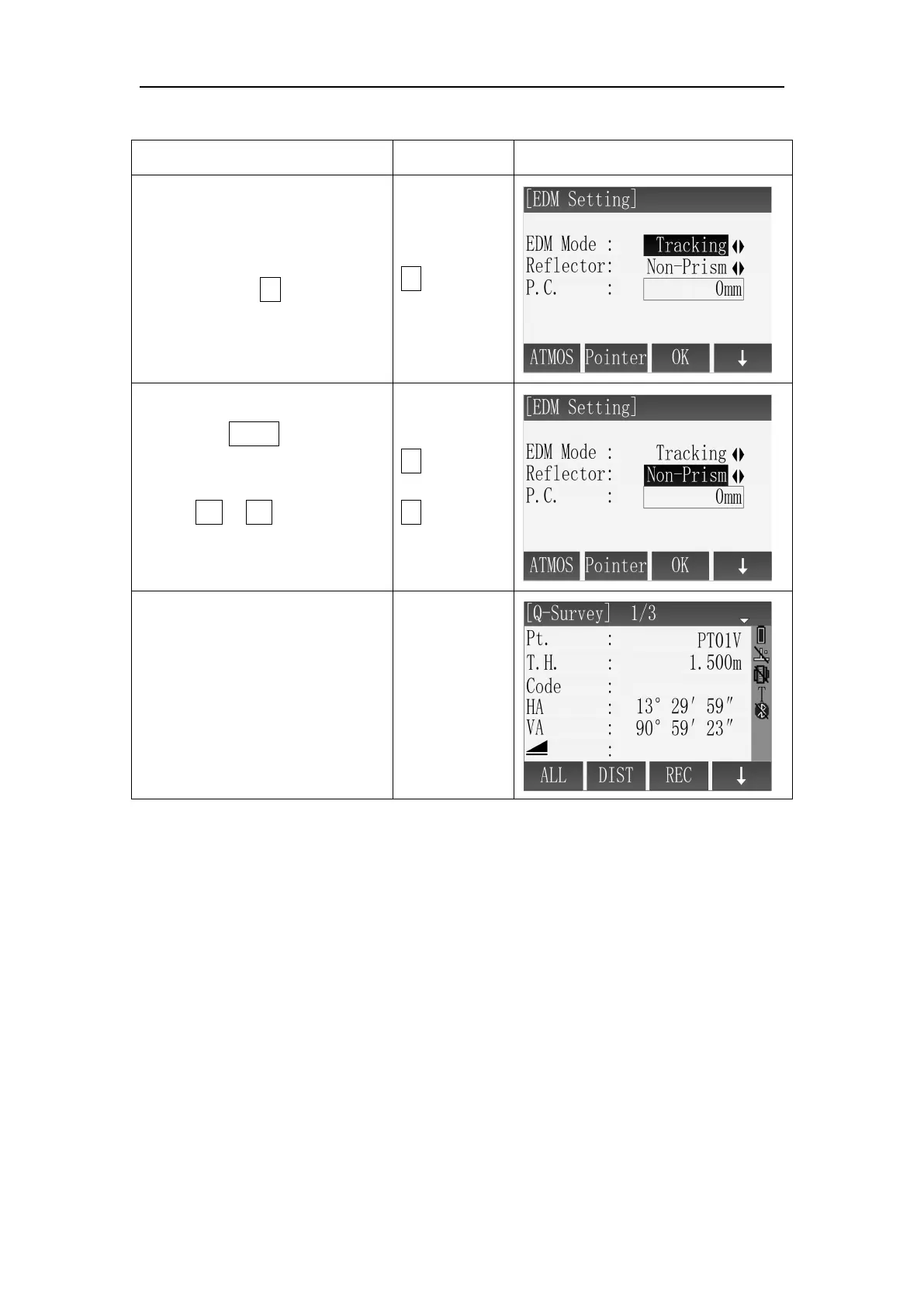

1 After entering to the
interface of EDM Setting, using
the direction of↓ to move the
cursor to the setting item of
Reflector.
↓
○
2 Press ← → to select the
types of reflector. Each time you
press ← or → , the type of
reflector is switched.
←
→
○
3 After finished setting, press
[F3] (OK) to return the function
of Q-Surveying. If you want to
cancel the settings, press [ESC]
to ignore the changes.
[F3]
Set up the Reflecting Prism Constant.
As a prism is selected as a reflector, a prism constant should be set before any
measurement. If the constant is entered and set, it is saved and will not be erased
after switching off the instrument.
Example: Prism Constant is -30mm
