6. Stakeout
The Stakeout Application can calculate lofting elements base on lofting point’s
coordinate or manually input angle or horizontal distance. The application can
continuously display differences, between current position and desired stake out
position.
Steps of Stakeout :
1. Set the job.
2. Set the station
3. Set the orientation
4. Extract coordinates from memory. The coordinates may be a measured point
or a manually entered fix point.
5. Start staking out. There are three ways to choose: Polar Stakeout mode,
Orthogonal to Station Stakeout mode, Cartesian Stakeout mode.
6.1 Set Stakeout Point
 Extract coordinates from job
Steps
Key
Display
○

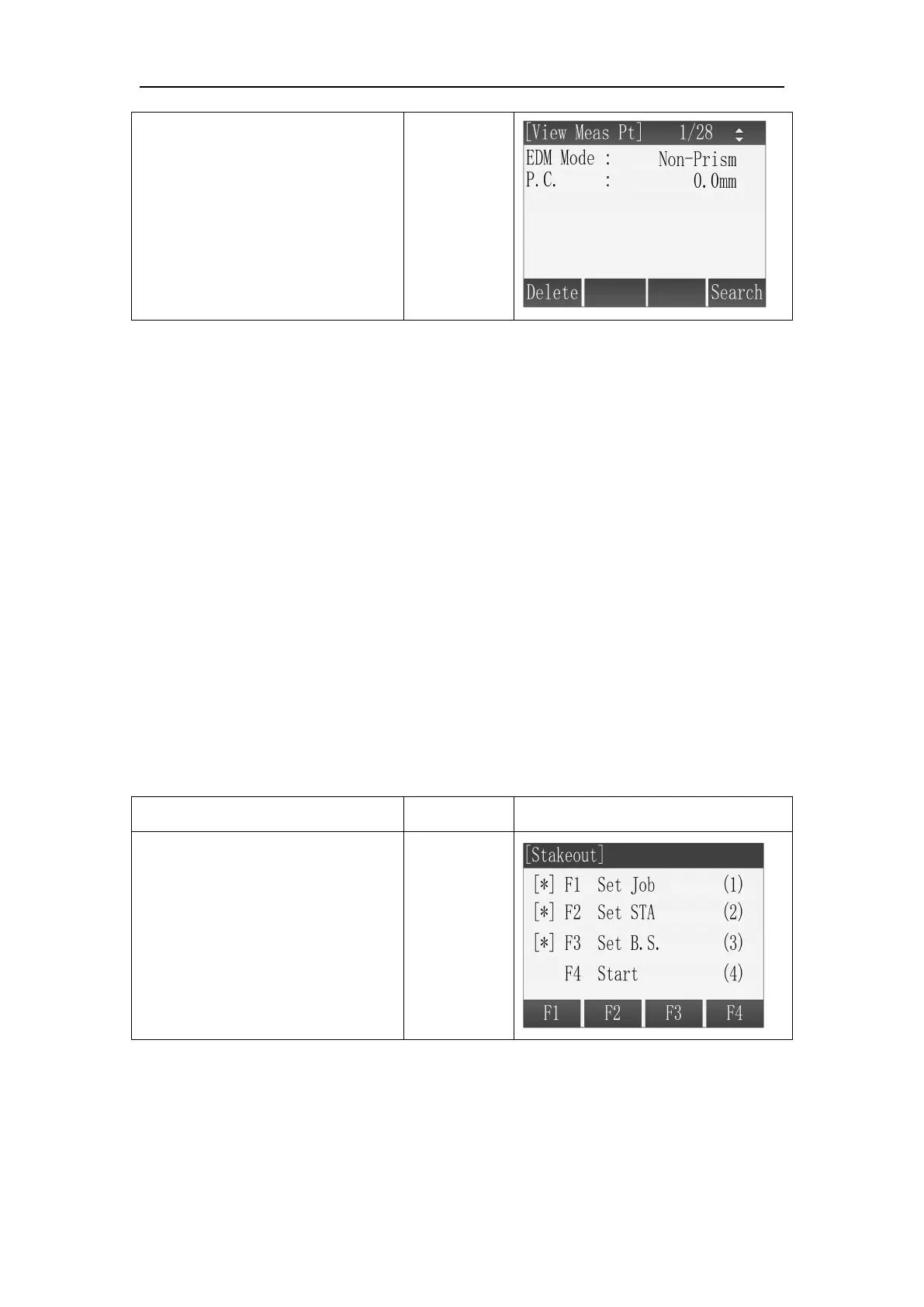

1
After finishing setting the job,
setting the station and setting the
orientation, press [F4] to start
staking out in the Pre-Setting
menu. ※
1
[F4]
