SatLab SLT2 - Adjust Tilt y

Total Station Manual
-
181
-
Note: CoK (linear coefficient): If absolute value > 1.5, you need to re-calibrate; In
the correction process by pressing the ESC key, will exit, holding compensator
parameters unchanged.

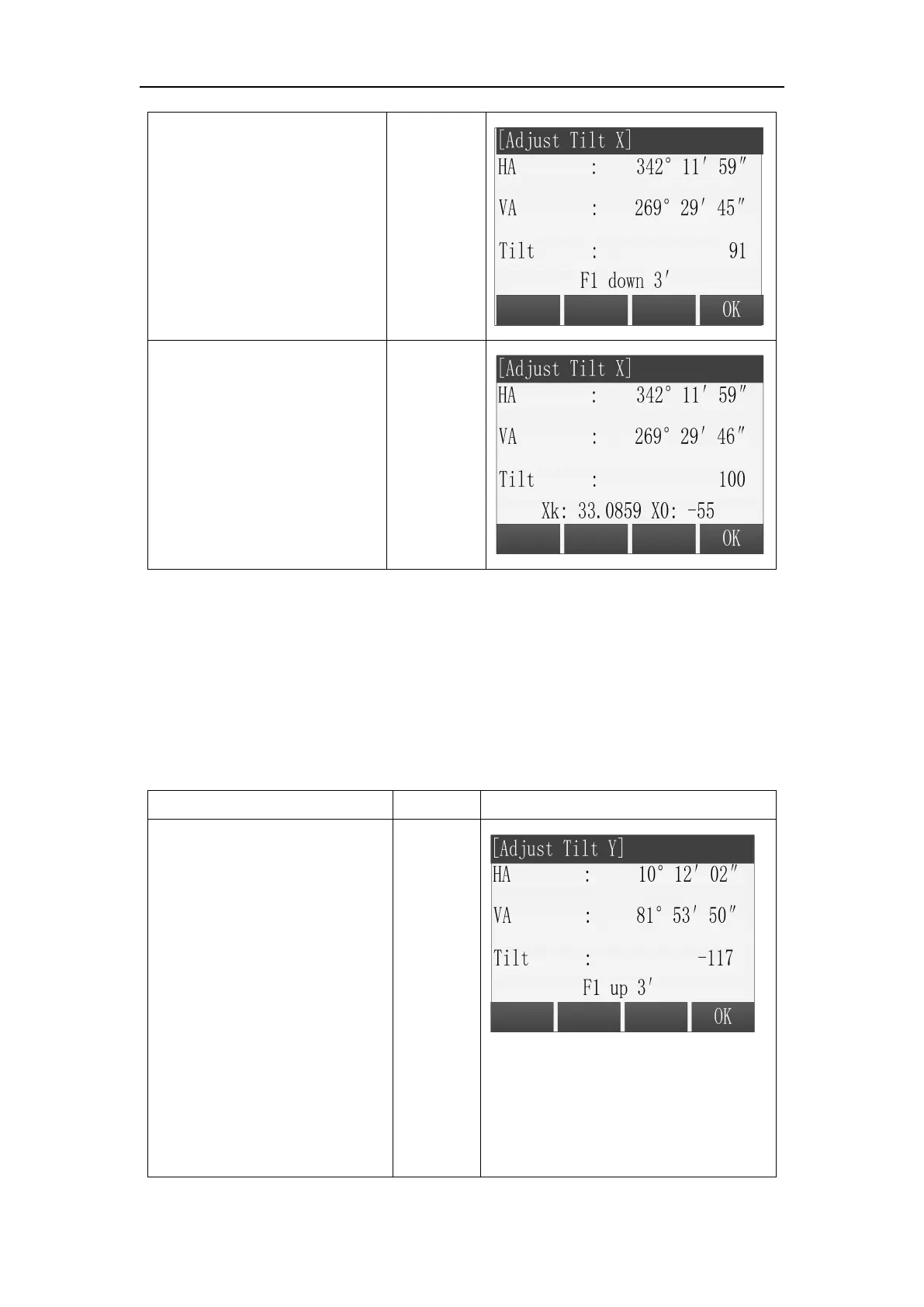

1.4 Adjust Tilt Y
In Tools Menu, choose “1 Adjust”, and then press [F4] to enter “Adjust Tilt Y”.
These are the calibration of y-direction of compensator’s vertical axis.
Steps
Key
Display
○
1 Level instrument, focus on
the reticle of collimator,
record the vertical angle V0.
Use fine tuning to set
vertical angle to V0+3’,focus
on the reticle center
accurately, then turn the
instrument counterclockwise
90 °, wait for stable value,
press [F4](OK) ,and then turn
90 ° clockwise back to the
original direction.
[F4]
○
5 Use fine tuning to set the
vertical angle as V1+3’, focus
on the reticle center
accurately, wait for stable
value, press [F4](OK).
[F4]
○
6
After finishing, it will
display the results, press
[F4](OK), save and back to
menu.
[F4]
