Total Station Manual
[PHI]:Means the intersection data.
[Sec]:refer to the element method
[TXT]: is for the stake data.
All data mentioned above can be
created by Hi-Survey.
13. Stakeout Reference Element
Stakeout Reference Element is used for making Reference Element stakeout
and check easier, such as building, road cross section, or simple excavation. User can
define a Reference Line/ARC, according to measuring result, to calculate out the
deviated difference& elevation difference between measuring point and reference
line/arc. Reference element function include:
User need to define a reference line through a known base line. The reference
line can be shifted in longitudinal, horizontal, vertical direction, or rotate around the
first base point as needed. The line after shift is as reference line, all observed data
refer reference line. User can choose the first point, second point or mean point in
refline direction as referred elevation point.

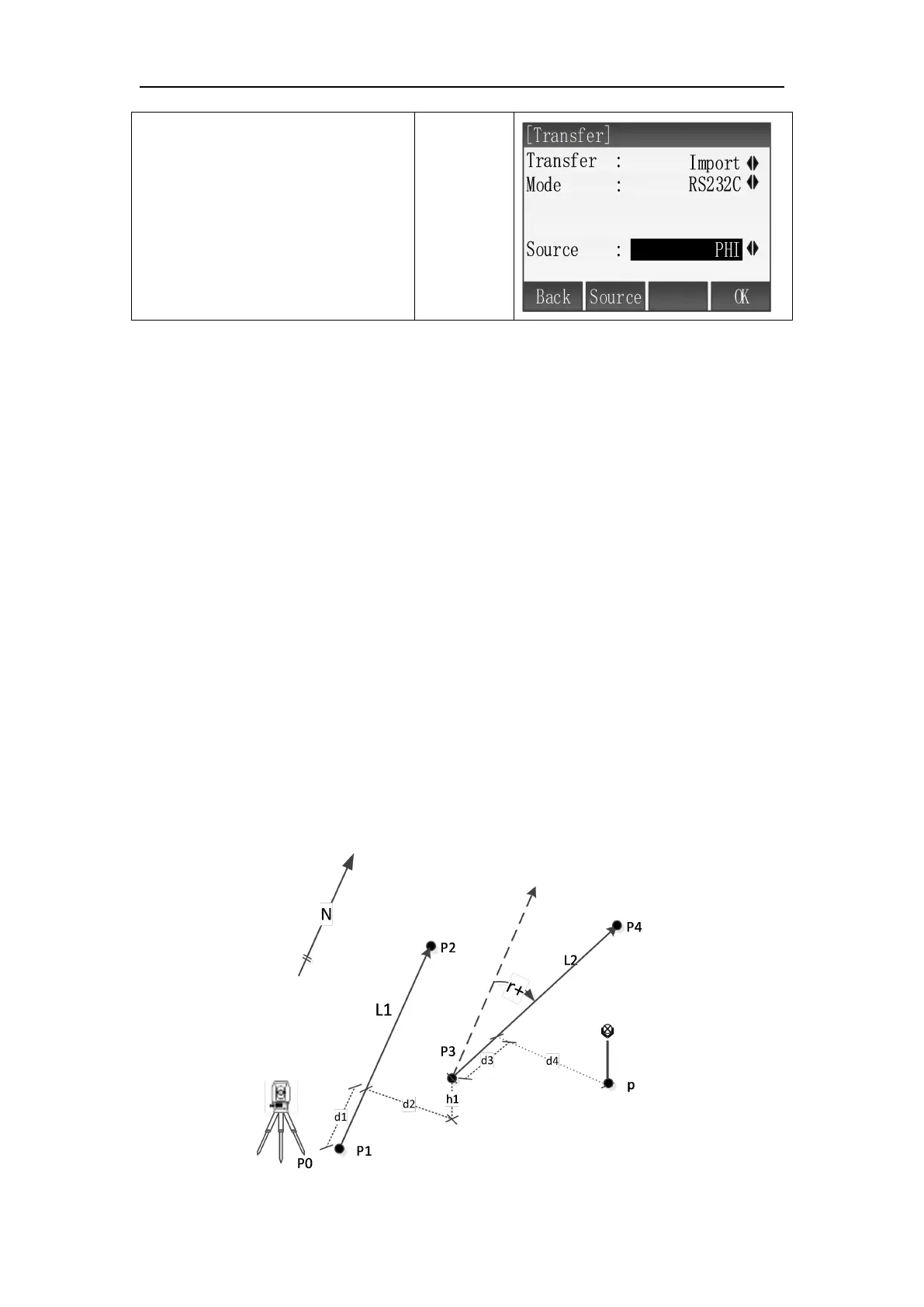

Refline schematic diagram:
