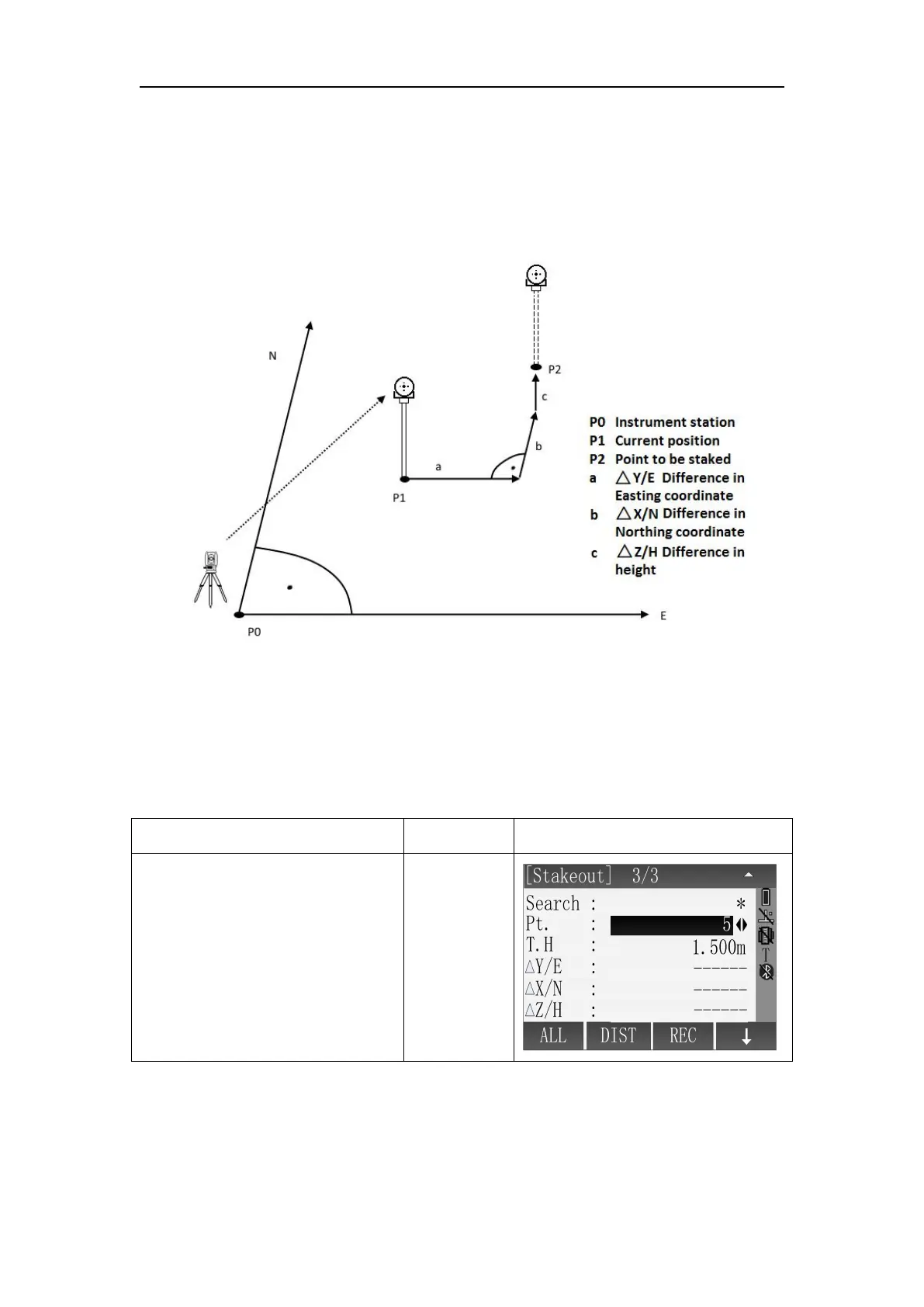

6.4 Cartesian Stakeout Mode
Stake out point based on the Cartesian coordinate system. The deviation values
are the coordinate differences.
The meanings of the differences in the Cartesian Stakeout Mode:
△Y/E The difference in East coordinate between measured point and stakeout
point.
△X/N The difference in North coordinate between measured point and stakeout
point.
Steps
Key
Display
○
1
Press [PAGE] to show
Cartesian Stakeout Mode in page
3/3. Set the stakeout point. The
stakeout point can be found in
the job through inputting point
name in the search item.
[PAGE]
