Total Station Manual
○
2

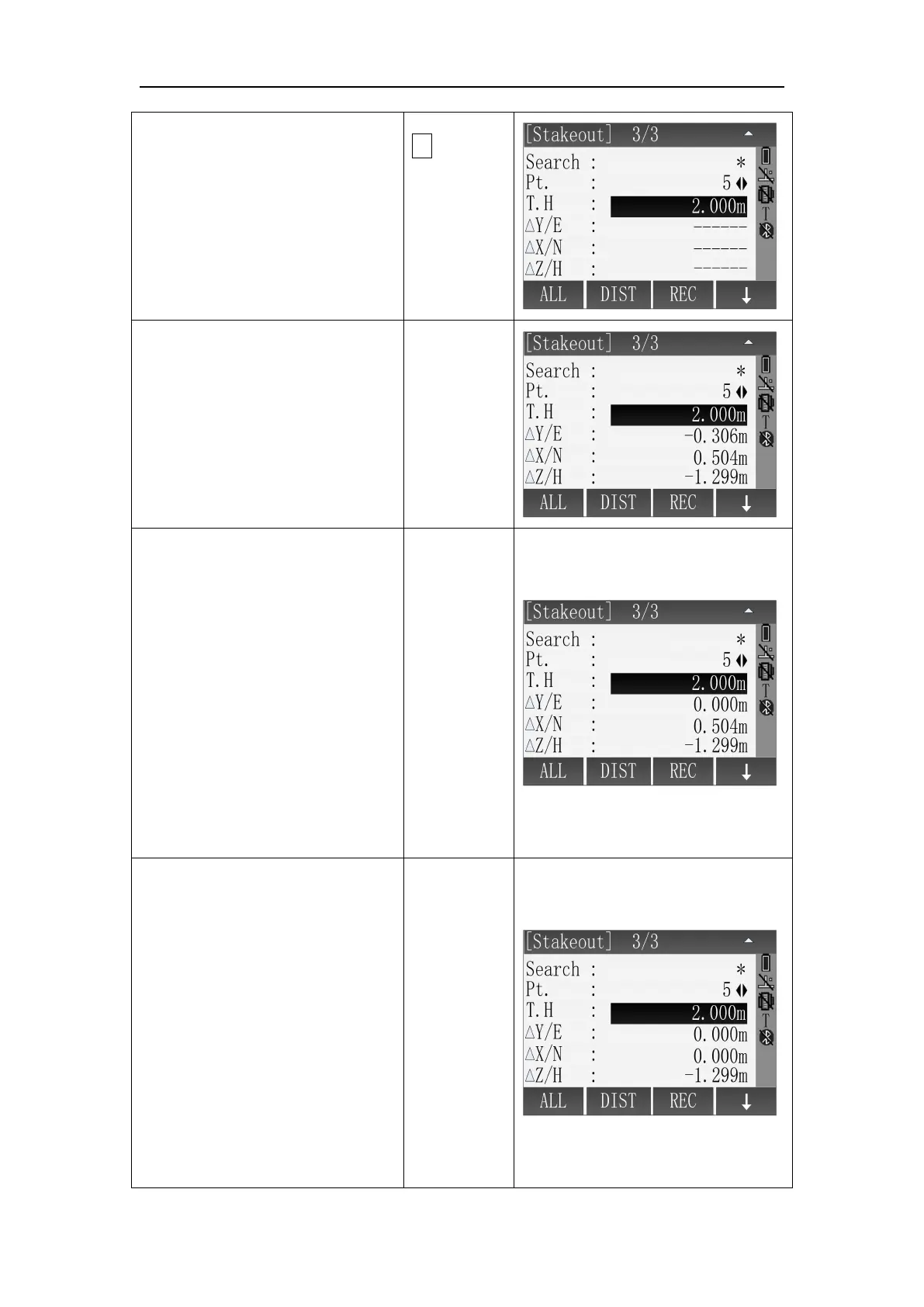

Press direction key and move
the cursor to input prism height
item. Input the prism height and
then press [ENT] to confirm.
↓
+
Input prism
height
+
[ENT]
○
3 Aim at the prism. Press
[F2](DIST) to start measuring and
calculate the differences between
measured point and stakeout
point.
○
4 Move the prism along the
East direction to make the value
of △Y/E equal 0m.
△ Y/E is positive: The stakeout
point is in the right side of
measured point. Move the prism
to right.
△ Y/E is negative: The stakeout
point is in the left side of
measured point. Move the prism
to left.
○
5 Move the prism along the
North direction to make the value
of △X/N equal 0m.
△ X/N is positive: The stakeout
point is farther than the
measured point. Move the prism
far away the station.
△ X/N is negative: It needs to
move the prism close to the
station.
In the process of staking out, if
