SatLab SLT2 - Inverse Calculations

Total Station Manual
-
108
-
○
6 Input the name of result
point in the [Traverse Result]
and press [F4](REC) to save
the point.
[F4](REC)
※ In all of the above operation, press [ESC] to return to the previous screen.
※ The result point is plane data.
11.2 Inverse
Use the inverse sub application to calculate the distance, direction, height
difference between two known points.

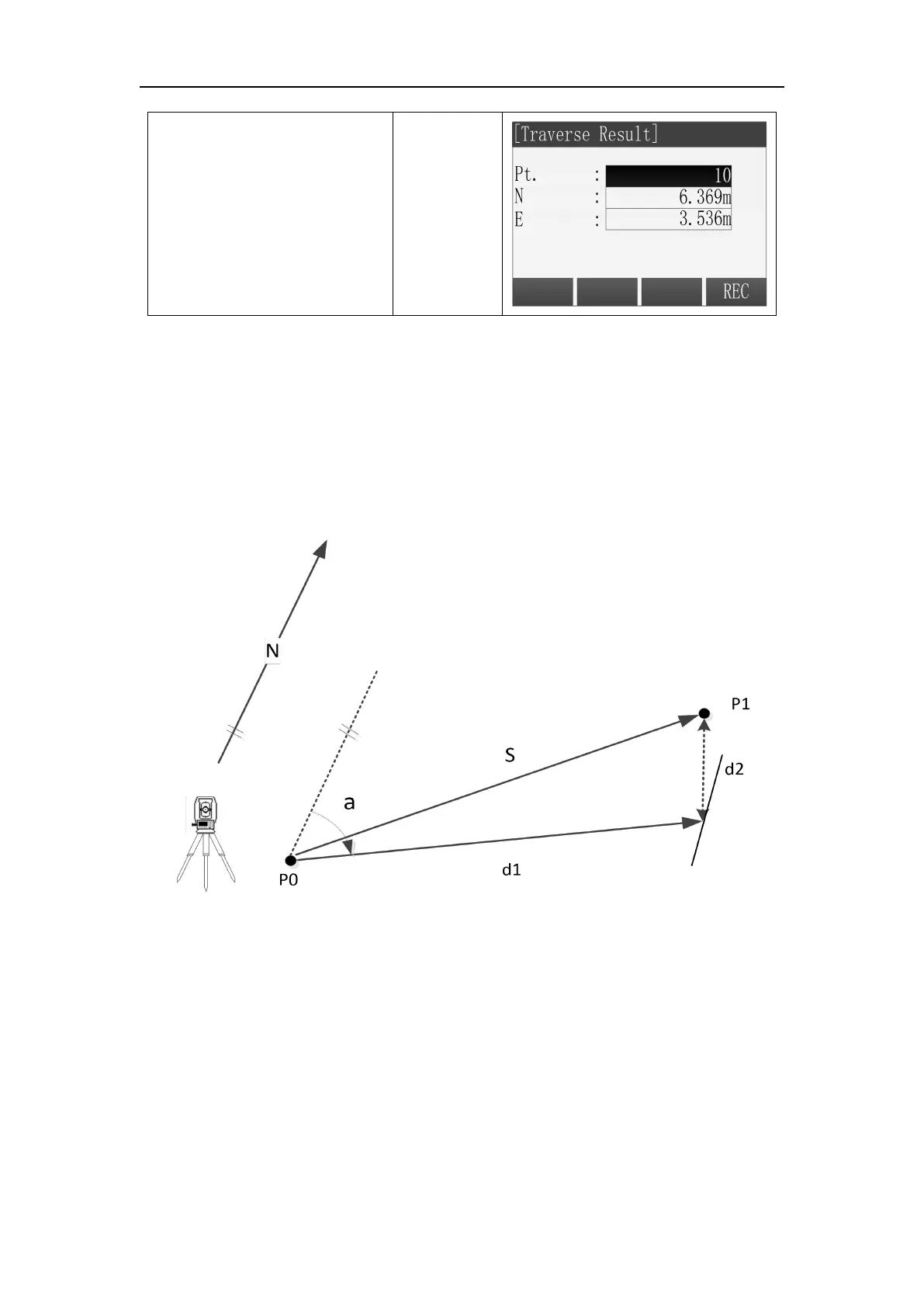

Figure 11.2 Inverse Diagram
Known
P0 First known point
P1 Second known point
Unknown
a Direction from P0 to P1
S Slope distance between P0 and P1
d1 Horizontal distance between P0 and P1
d2 Height difference between P0 and P1
