Note: A maximum of 64 IP addresses may be added to the list.
Edit/Remove an IP
Note: Existing IP addresses are shown before the “Add IP” option.
1. Use the and buttons to
move the cursor to the desired IP
address to edit, then press the
button.
2. Use the and buttons to
select either “Edit” or “Remove”,
then press the button.
Clear All
This option will clear all IP addresses in the filter list.
1. Use the and buttons to
move the cursor to “Clear All”, then
press the button.
2. Press the button one more
time to clear all the IP addresses in
the list.
Receive 2
1. Use the and buttons to move the
cursor to “Receive 2”, then press the
button to access the Edit screen.
IP
1. Use the and buttons to move
the cursor to “IP:” then press the
button.
2. Use the and buttons to
select the column to edit and use the
and buttons to change the
IP, then press the button to save
the selection.
Note: A Unicast or Multicast IP address may be chosen.
Unicast: X.X.X.X – 223.255.255.255
Multicast: 224.0.0.0 – 239.255.255.255
Suggested Multicast Range: 239.192.X.X

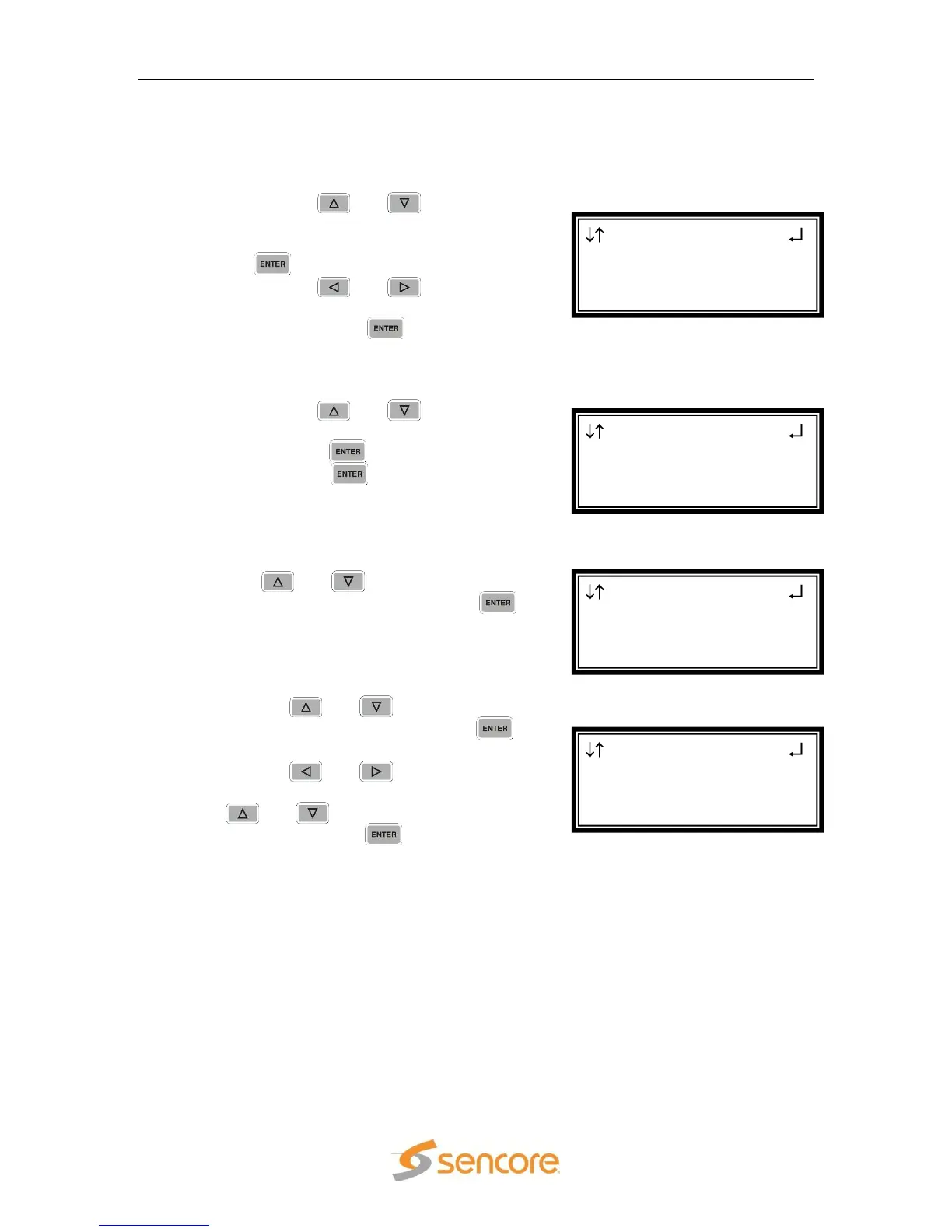

MPEG/IP 1-3 2 ←→
►Ip:239.192.001.050
Dest Port:01050
Send IGMP Report
MPEG/IP 1-3
Auto Timeout:005s
Receive 1
►Receive 2
MPEG/IP 1-3 1
239.192.20.3
Add IP
►Clear All
MPEG/IP 1-3 1
Filter Mode:Include
Edit Remove
Add IP
