MRD 3187B - User Manual
Page 133 (245)

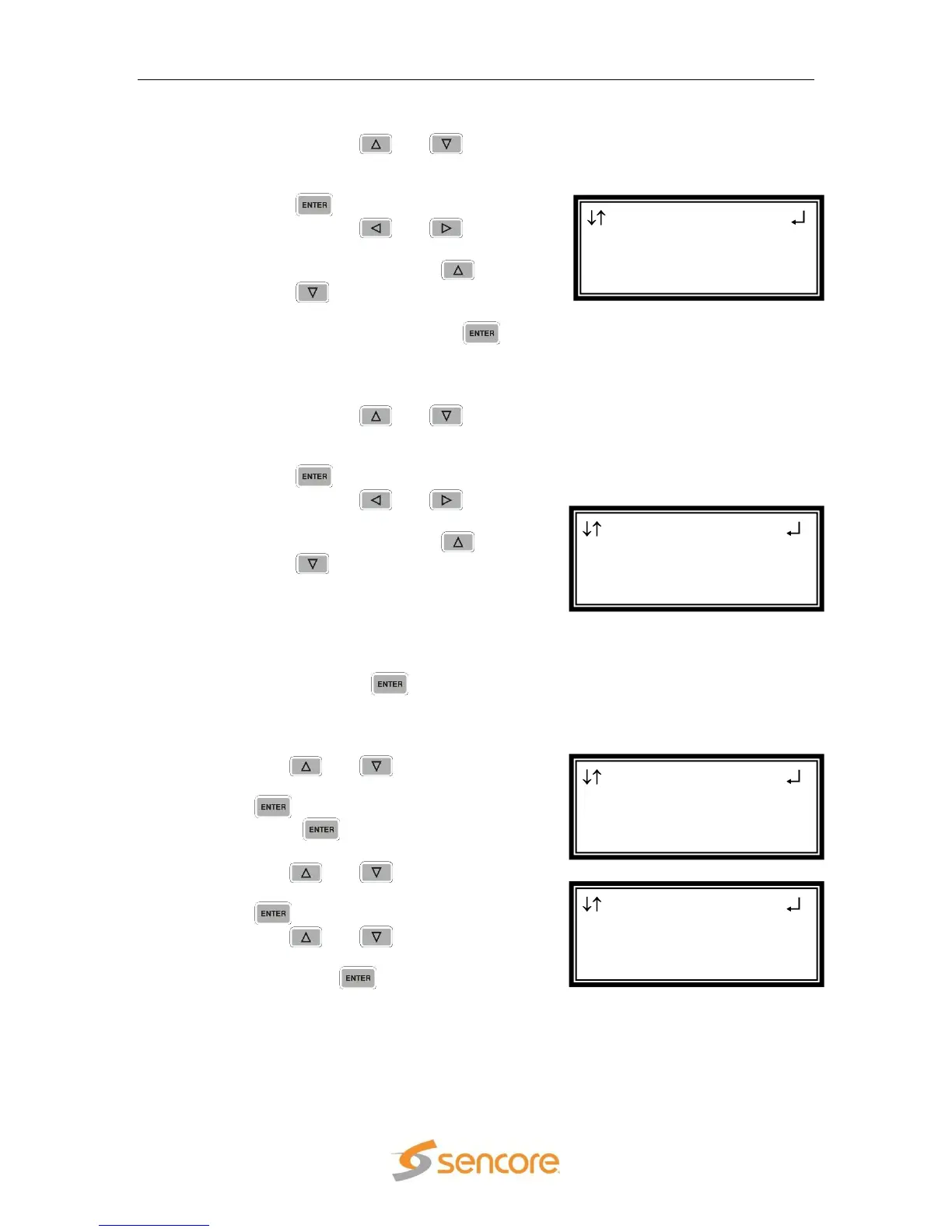

Packets Per Frame
1. Use the and
buttons to move the cursor to
“Packets/Ip:” then press the
button.
2. Use the and
buttons to select the column
to edit and use the and
buttons to change the
number of packets per frame
(1 –7), then press the
button to save the selection.
Differentiated Services
1. Use the and
buttons to move the cursor to
“DiffServ:” then press the
button.
2. Use the and
buttons to select the column
to edit and use the and
buttons to change
between (“Default”, “AF11”,
“AF12”, “AF13”, “AF21”,
“AF22”, “AF23”, “AF31”,
“AF32”, “AF33”, “AF41”,
“AF42”, “AF43”, “EF”), then
press the button to save
the selection.
Transmit 2
1. Use the and buttons to move
the cursor to “Transmit 2”, then press
the button.
2. Press the button one more time
to get to the Edit screen.
3. Use the and buttons to move
the cursor to “Transmit:” then press
the button.
4. Use the and buttons to
change the selection to, “Enabled”,
then press the button to save the
selection.
MPEG/IP 1-4
►Transmit:Enabled
Phys Conn:Port 1
IP:239.192.0.1
MPEG/IP 1-4
Transmit 1
►Transmit 2
MPEG/IP 1-4
Source Port:01030
Packets/Ip:7
►DiffServ:Default
MPEG/IP 1-4
Source Port:01030
►Packets/Ip:7
DiffServ:Default
