MRD 3187B - User Manual
Page 134 (245)

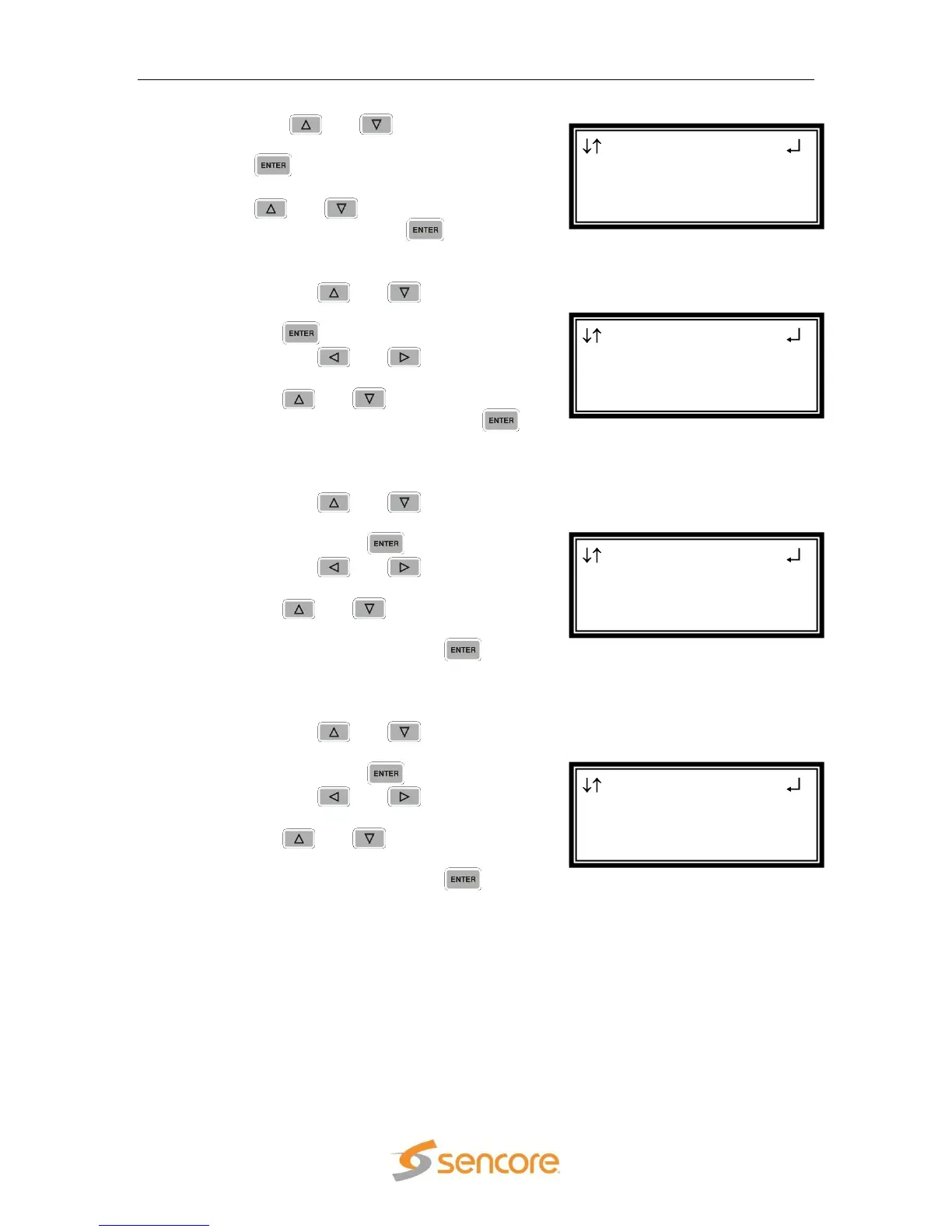

5. Use the and buttons to move
the cursor to “Phys Conn:” then press
the button.
6. Choose the physical connector using
the and buttons (“Port 1” or
“Port 2”) then press the button.
IP
1. Use the and buttons to
move the cursor to “IP:” then press
the button.
2. Use the and buttons to
select the column to edit and use
the and buttons to
change the IP, then press the
button to save the selection.
Destination Port
1. Use the and buttons to
move the cursor to “Dest Port:”
then press the button.
2. Use the and buttons to
select the column to edit and use
the and buttons to
change the destination port (1025
– 65536), then press the
button to save the selection.
Source Port
1. Use the and buttons to
move the cursor to “Source Port:”
then press the button.
2. Use the and buttons to
select the column to edit and use
the and buttons to
change the destination port (1025
– 65536), then press the
button to save the selection.
MPEG/IP 1-4 ←→
IP:239.192.0.1
Dest Port:01030
►Source Port:01030
MPEG/IP 1-4 ←→
IP:239.192.0.1
►Dest Port:01030
Source Port:01030
MPEG/IP 1-4 ←→
►IP:239.192.000.001
Dest Port:01030
Source Port:01030
MPEG/IP 1-4
Receive:Enabled
►Phys Conn: Port 2
IP: 239.192.0.1
