MRD 3187B - User Manual
Page 151 (245)

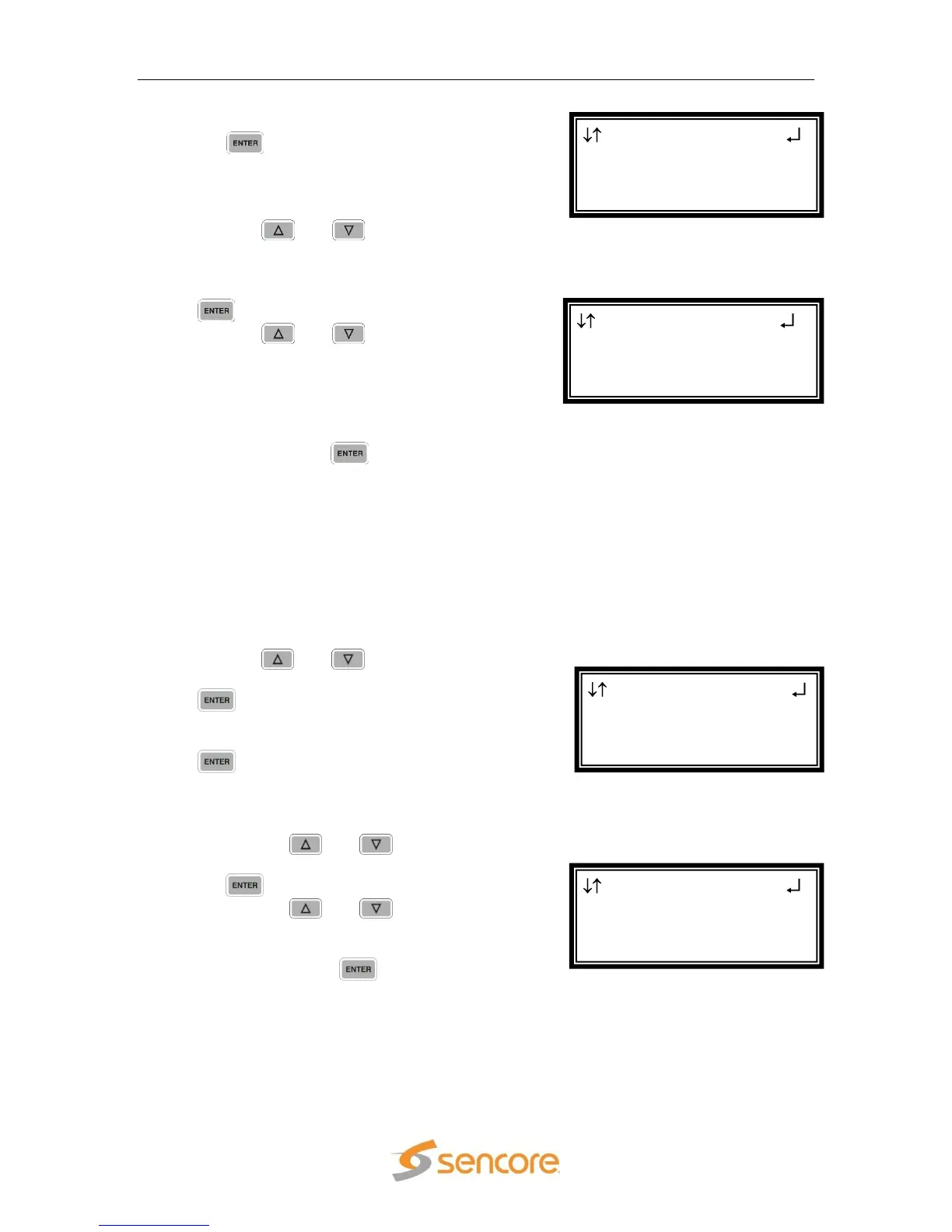

4. The current settings are displayed. Press
the
button again to edit the settings.
5. Use the
and
buttons to move the
cursor to the pair location for the
embedded audio, Group 1 “Pr1” or “Pr2”,
and Group 2 “Pr1” or “Pr2”, then press the
button to edit the assigned audio.
6. Use the
and
buttons to select
the audio that is assigned to the pair,
“Off”, “Aud 1 PCM”, Aud 1 Dig. Pass”,
“Aud 2 PCM”, or “Aud 2 Dig. Pass”. If an
8707A audio output card is installed in the
RDS, “DolbyE” is an additional audio
option. Press the
button to save the
selection.
Audio 1 Setup
The following menus are used to setup the audio downmix settings.
Note: Refer to Appendix F for the MRD 3187B Audio Explanation.
Note: These settings do not apply to DolbyE audio.
Use the following instructions to setup Audio 1-4 (if equipped).
1. Use the and buttons to move the
cursor to “Audio 1 Setup” then press the
button.
2. The current screen shows the status of
the audio downmix settings, press the
button again to display the Edit
screen.
Mode
1. Use the and buttons to move
the cursor to “Mode:” then press the
button.
2. Use the and buttons to
select the desired downmix type
(“Monitor”, “Transmission”, and User”)
then press the button to save the
selection.
Note: The following are set for each Mode:
Aud 1 Setup
►Mode:User
Compress:Custom 1
Downmix:2/0 LR
RDS 1 ←→
Sdi Aud Embed
Video Status
►Audio 1 Setup
SDI Audio Embed
Group 1
► Pr1:Aud 1 PCM
Pr2:Off
SDI Audio Embed
Group 1
Pr1:Aud 1 PCM
Pr2:Off
