MRD 3187B - User Manual
Page 86 (245)

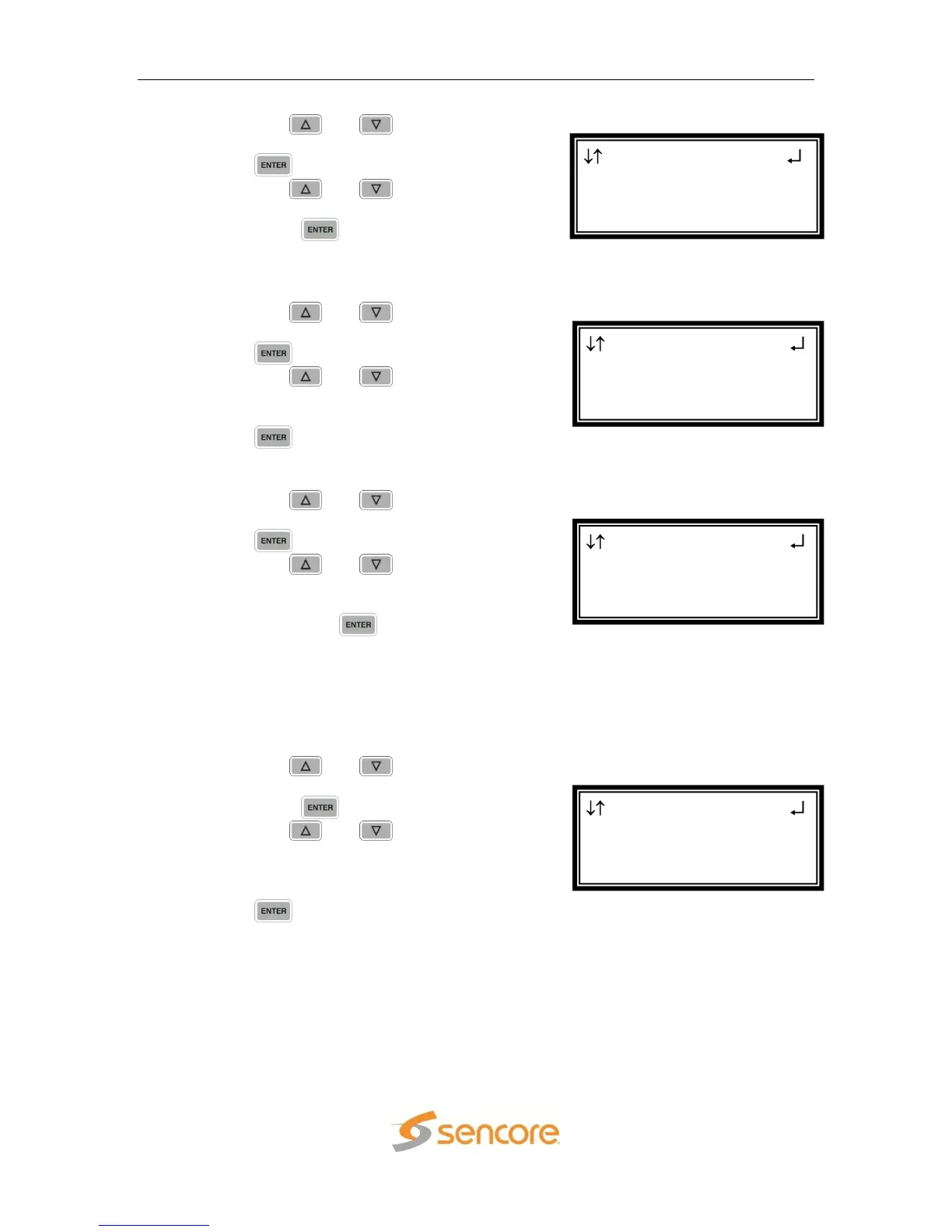

3. Use the and buttons to move
the cursor to “NTSC Ped:” then press
the button.
4. Use the and buttons to
select “Enabled” or “Disabled”, then
press the button to save the
selection.
Display Mode
1. Use the and buttons to move
the cursor to “Disp Mode:” then press
the button.
2. Use the and buttons to
select the desired output size
(“Letterbox”, “Cropped”), then press
the button to save the selection.
SD Mode
1. Use the and buttons to move
the cursor to “SD Mode:” then press
the button.
2. Use the and buttons to
select the desired output size
(“Letterbox”, “Cropped”, “Anamorph”),
then press the button to save the
selection.
Raster Color
This setting determines the color of the raster that is output by the decoder when
input is lost.
1. Use the and buttons to move
the cursor to “Raster Color:” then
press the button.
2. Use the and buttons to
select the desired raster color (“Black”,
“White”, “Yellow”, “Cyan”, “Green”,
“Magenta”, “Red”, “Blue”), then press
the button to save the selection.
SDI Anlg Vid 2-1
Anlg Out:RGBHV
NTSC Ped:Disabled
►Raster Color:Black
SDI Anlg Vid 2-1
►Disp Mode: Letterbox
SD Mode: Anamorph
SDI
SDI Anlg Vid 2-1
Format: 1920x1080i
16x9 29.97
►Disp Mode: Letterbox
SDI Anlg Vid 2-1
Analog
Anlg Out:RGBHV
► NTSC Ped:Disabled
