MRD 3187B - User Manual
Page 87 (245)

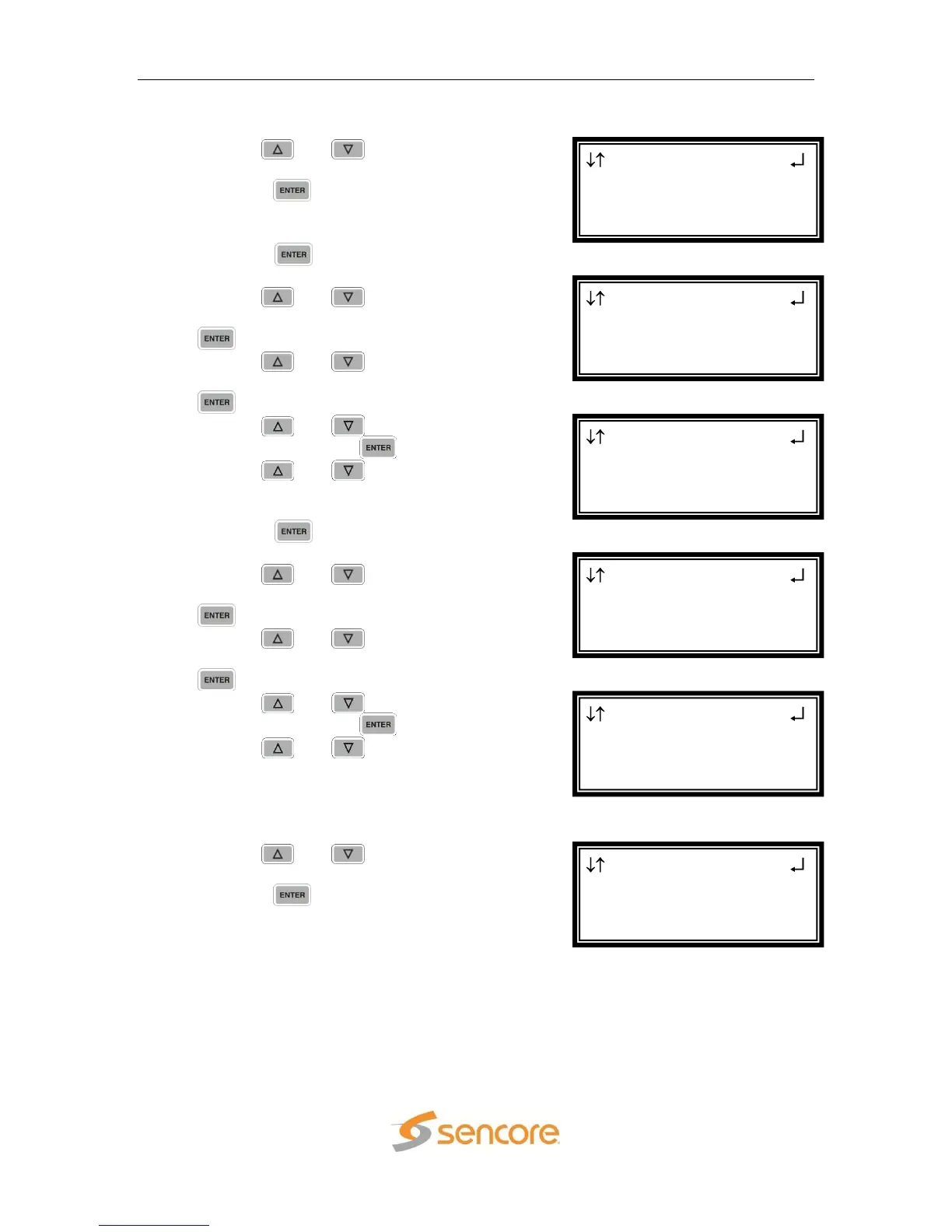

HD SDI VANC Embedding
1. Use the and buttons to move the
cursor to “HD SDI VANC Assign”, then
press the button to view the Status
screen.
2. Press the button once more to
display the Edit menu.
3. Use the and buttons to move the
cursor to “EIA-608CC”, then press the
button.
4. Use the and buttons to choose
“Enabled” or “Disabled” then press the
button to save the selection.
5. Use the and buttons to select
“Line:” and press the button.
6. Use the and buttons to change
the line number (9 – 15) in which the
ancillary data will be located.
7. Press the button once more to
display the Edit menu.
8. Use the and buttons to move the
cursor to “EIA-708CC”, then press the
button.
9. Use the and buttons to choose
“Enabled” or “Disabled” then press the
button to save the selection.
10. Use the and buttons to select
“Line:” and press the button.
11. Use the and buttons to change
the line number (9 – 15) in which the
ancillary data will be located.
SD SDI VANC Embedding
1. Use the and buttons to move the
cursor to “SD SDI VANC Assign”, then
press the button to view the Status
screen.
SDI Anlg Vid 2-1
Video
HD SDI VANC Assign
►SD SDI VANC Assign
SDI VANC 2-1
Line:9
EIA-608CC:Disabled
► Line:9
SDI VANC 2-1
Line:9
► EIA-708CC:Disabled
Line:9
SDI VANC 2-1
ADP
EIA-608CC:Disabled
► Line:9
SDI VANC 2-1
ADP
► EIA-608CC:Disabled
Line:9
SDI Anlg Vid 2-1
Video
►HD SDI VANC Assign
SD SDI VANC Assign
