and burst” signal must be the same as the frame rate of the video output. The
“Genlock Reference”, under the button, must be set to the type of Genlock
signal being used as well. If the Genlock input source is lost, the red Error LED will
illuminate, a Decoder Error will show, and the Error list will show the error. The video
will restore but will not be Genlocked until the Genlock signal is restored.

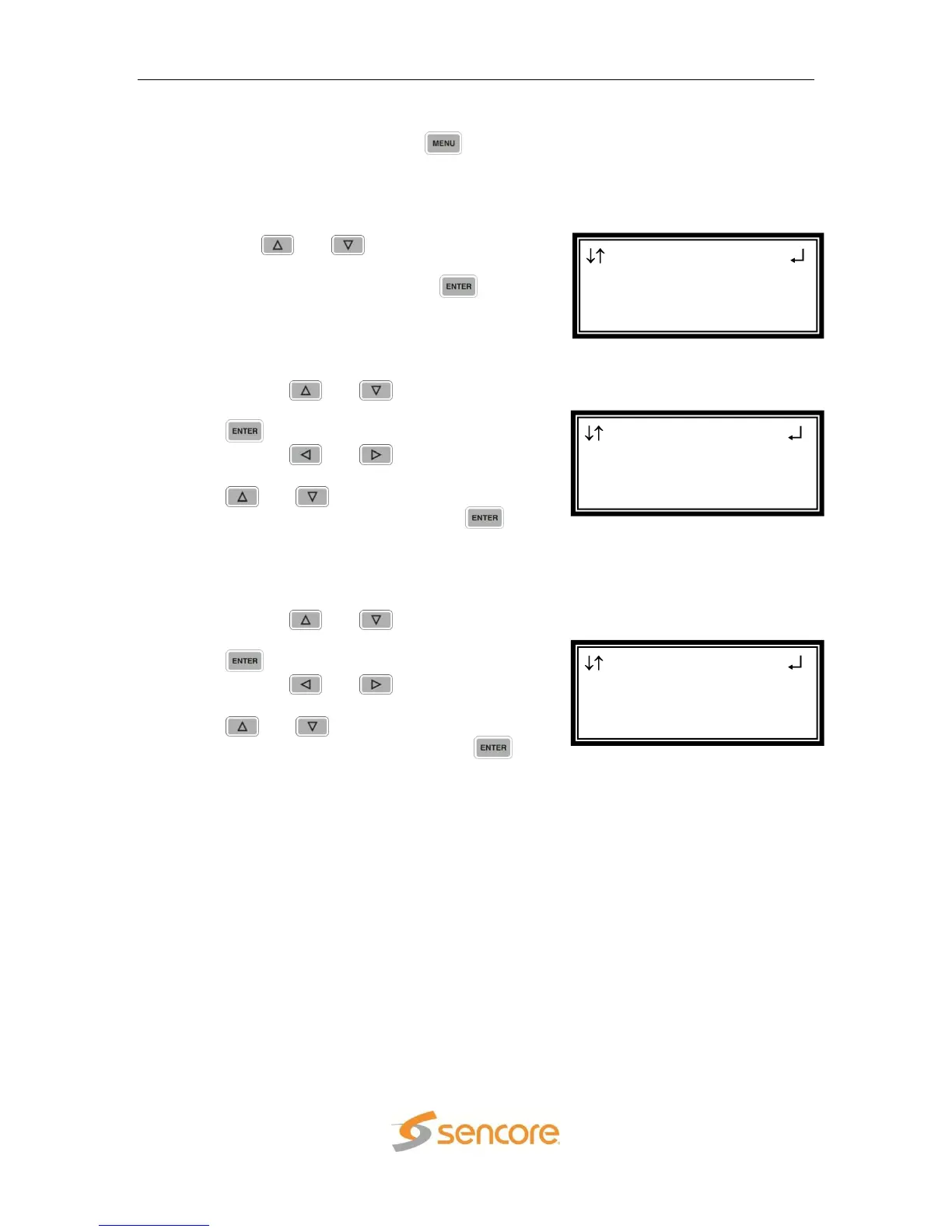

1. Use the and buttons to move the
cursor to “HD Genlock Offset” or “SD
Genlock Offset”, then press the
button.
Note: Both HD and SD Genlock are setup using the same steps.
Vertical
1. Use the and buttons to move
the cursor to “Vert:” then press the
button.
2. Use the and buttons to
select the column to edit and use the
and buttons to change the
number of lines, then press the
button to save the selection.
Note: The maximum amount of offset is determined by the format of the video
set.
Horizontal
1. Use the and buttons to move
the cursor to “Horiz:” then press the
button.
2. Use the and buttons to
select the column to edit and use the
and buttons to change the
number of pixels, then press the
button to save the selection.
Note: The maximum amount of offset is determined by the format of the video
set.
Genlock Offset
Vert:-125 lines
►Horiz:-0177 pixels
Genlock Offset
►Vert:-125 lines
Horiz:-0177 pixels
SDI Anlg Vid 2-1
CMPST VBI Assignment
►HD Genlock Offset
SD Genlock Offset
