SL Tablestand 133-S DW

102

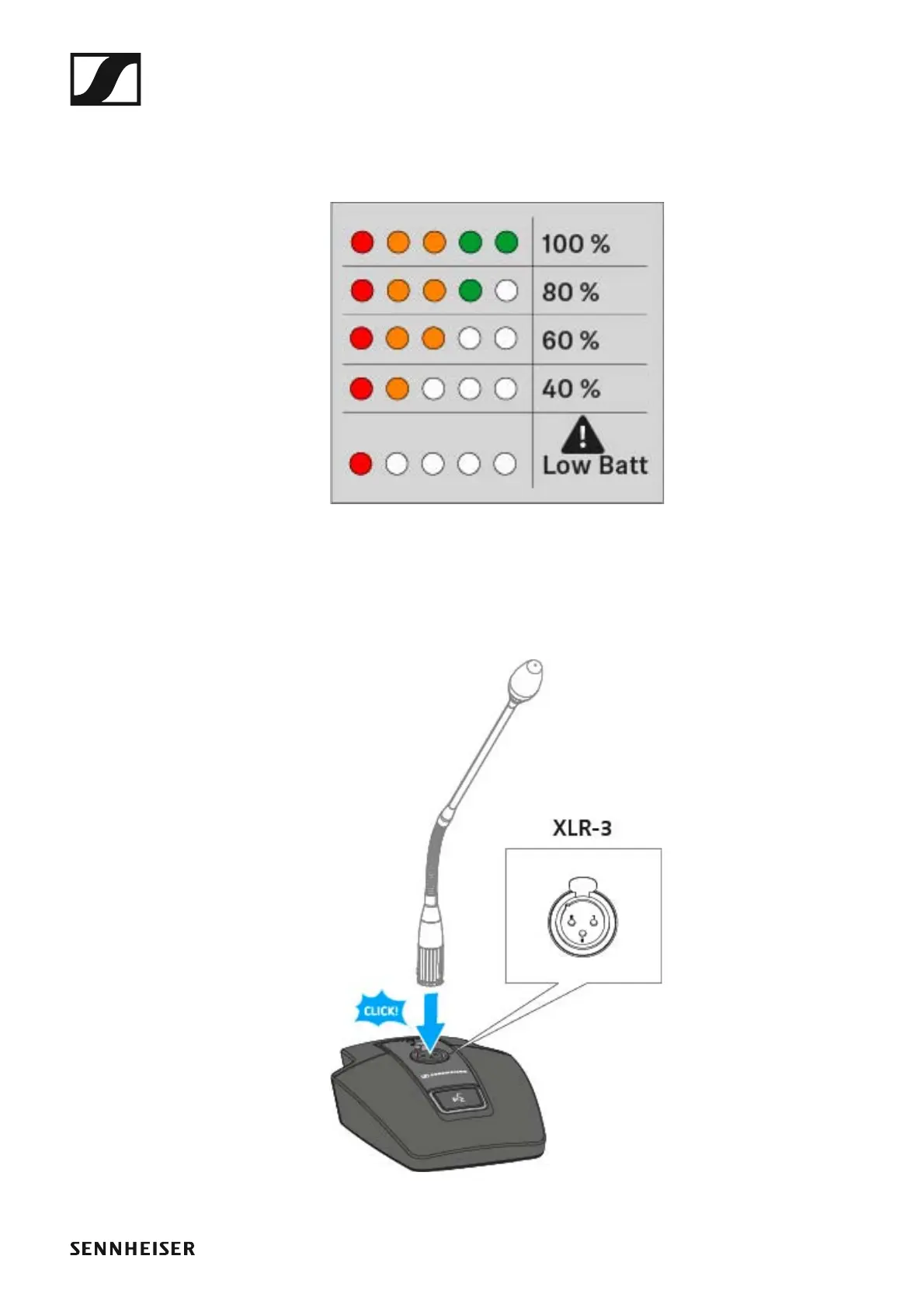

Meaning of the charge level LEDs on the table stand

The charge level LEDs indicate the charge level of the SL Tablestand 133-

S DW. At 100 % charge, the SL Tablestand 133-S DW has an operating

time of about 10 hours.

►

Connecting the goose neck microphone

We recommend using the MEG 14-40 goose neck microphone. This micro-

phone is optimally suited for the table stand.

To connect the goose neck microphone:

►

▷ Plug the goose neck microphone into the XLR-3 socket until it locks into

place.
