The SL Headmic 1 headset microphone

124

Preparing the SL Headmic 1 for use

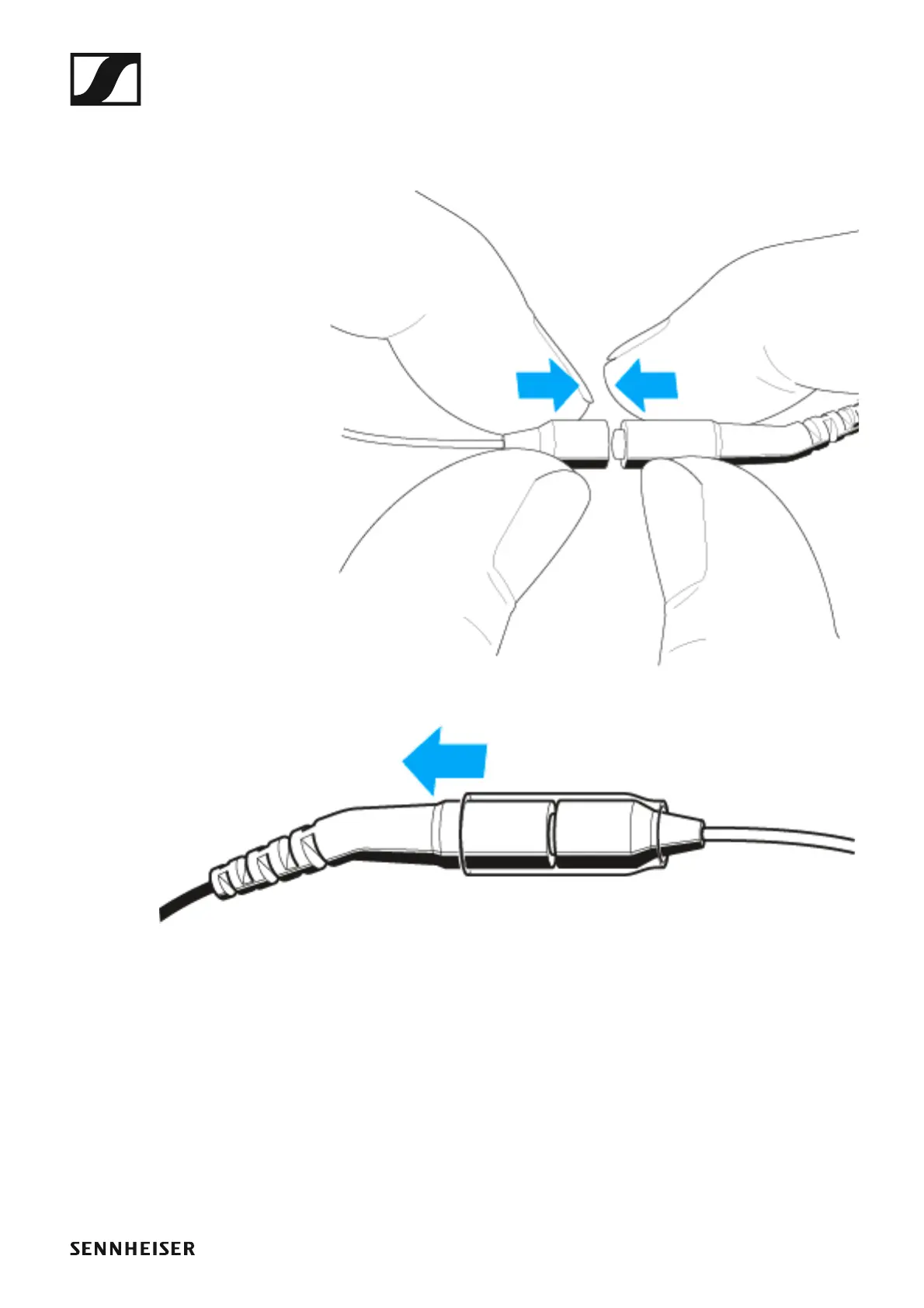

To connect the cable to the headset microphone:

▷ Plug the connector into the socket.

►

▷ Slide the silicone tube onto the connector.

►
