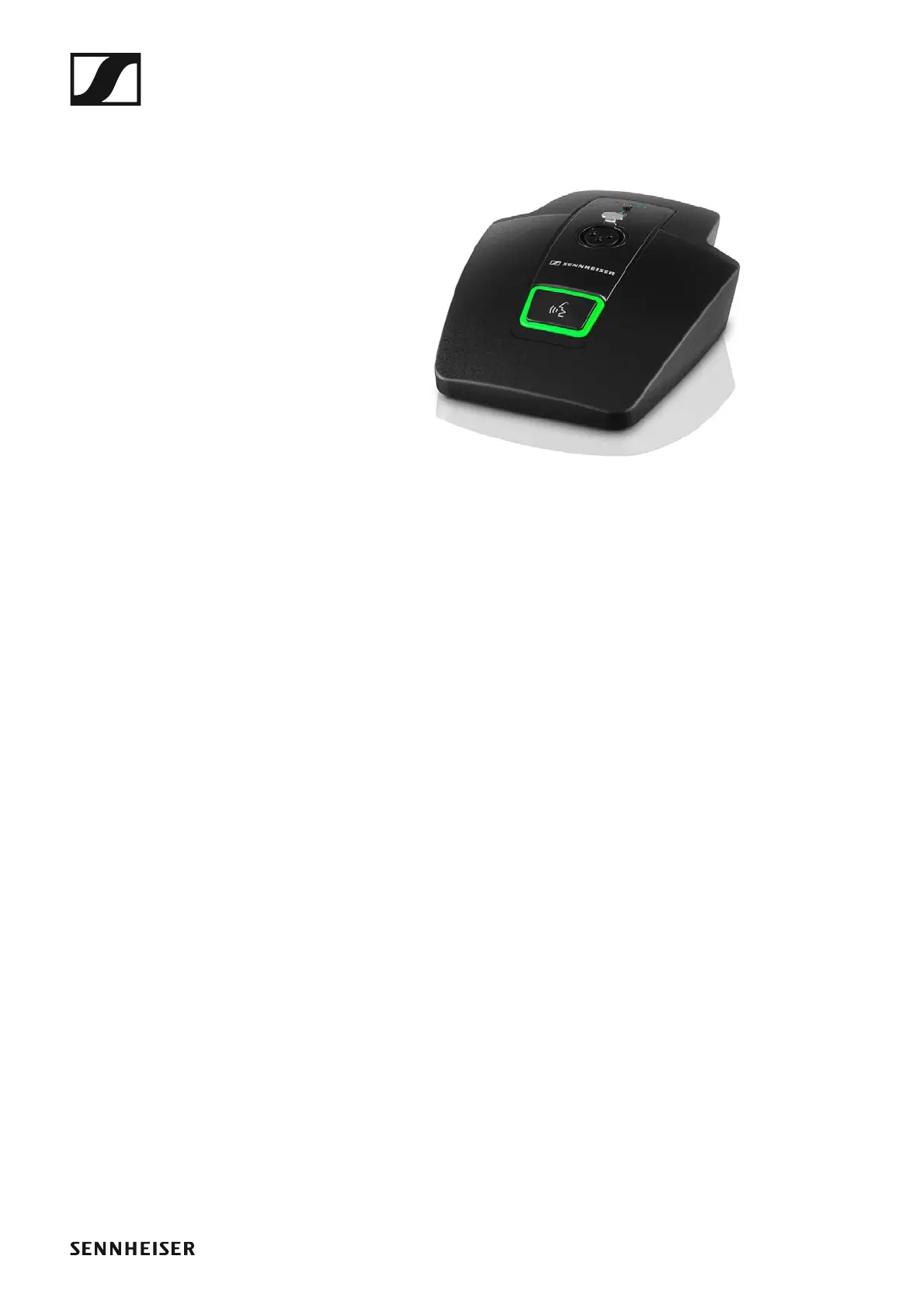

The wireless SL Tablestand 133-S DW

►

The wireless SL Tablestand 133-S DW is designed for your speech. It is

compatible with all Sennheiser XLR-3 goose neck microphones, making it

ideal for podium discussions, speeches and presentations.

Because it is completely cable free, the SL Tablestand 133-S DW is ex-

tremely versatile and suited for a wide range of applications.

The SL Tablestand 133-S DW can be charged either wirelessly or via USB.

The CHG 2W wireless charging base for two mobile devices is available

separately. The SL Tablestand 133-S DW is delivered with a rechargeable

battery that lasts up to 10 hours.

The Sennheiser Control Cockpit software can be used to monitor and con-

trol the wireless table stand remotely.
