The SL Tablestand 153-S DW
105

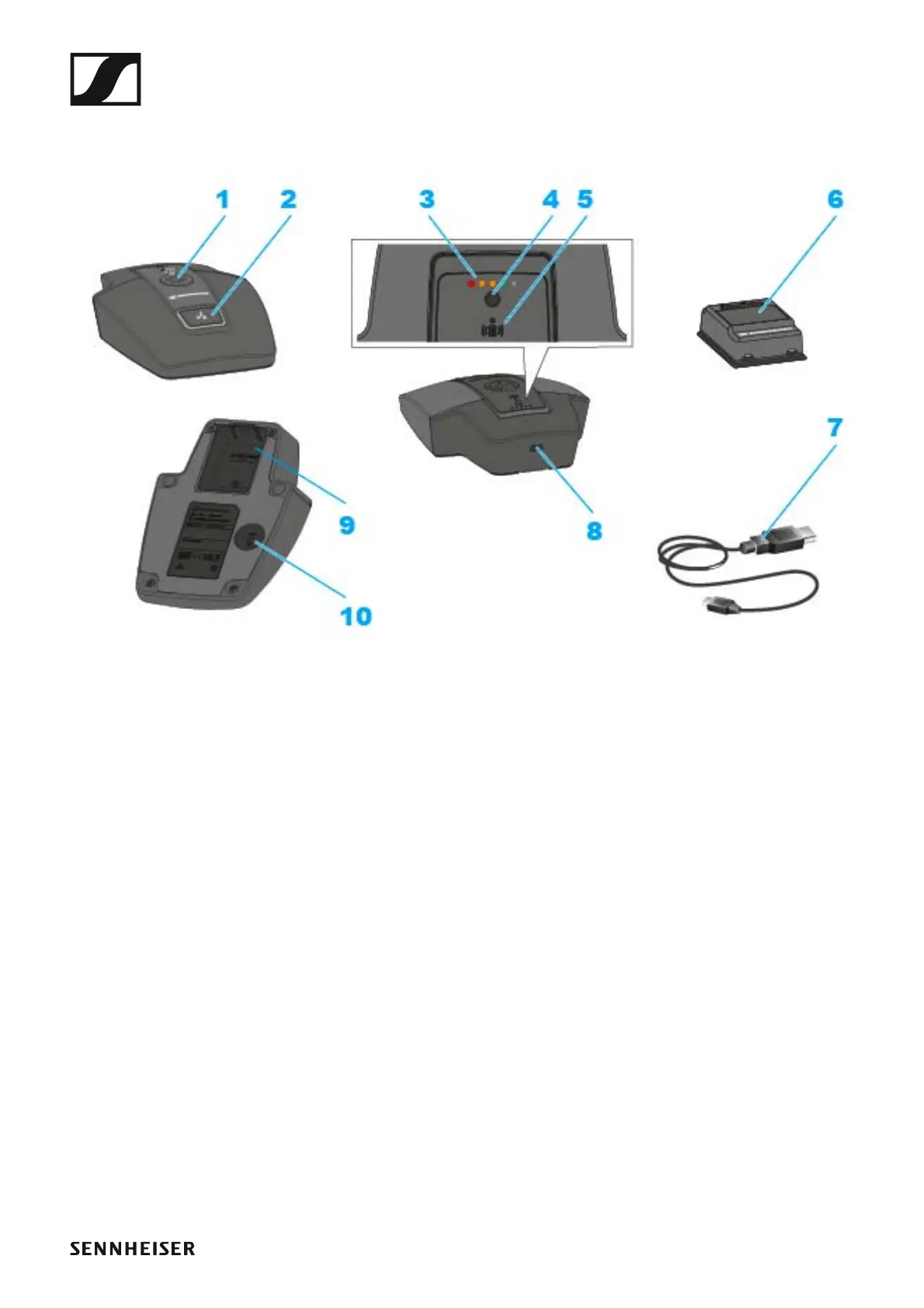

Product overview
►
1 XLR-5 socket for connecting a goose neck microphone
2 ON/OFF button with mute function
3 Charge level LEDs
• See „Meaning of the charge level LEDs on the table stand”
4 Button for displaying the charge level
5 Alignment LED
• Lights up when the SL Tablestand 153-S DW is correctly positioned
for charging on the CHG 2W charging base
6 BA 40 accupack
• See „Removing/inserting the BA 40 accupack”
7 USB cable
8 Micro-USB socket
9 Rechargeable battery compartment for BA 40 accupack
• See „Removing/inserting the BA 40 accupack”
10PAIR button
• Short-press to identify the paired receiver
• Long-press to pair with a different receiver
•See „Pairing”
