The SL Headmic 1 headset microphone

126

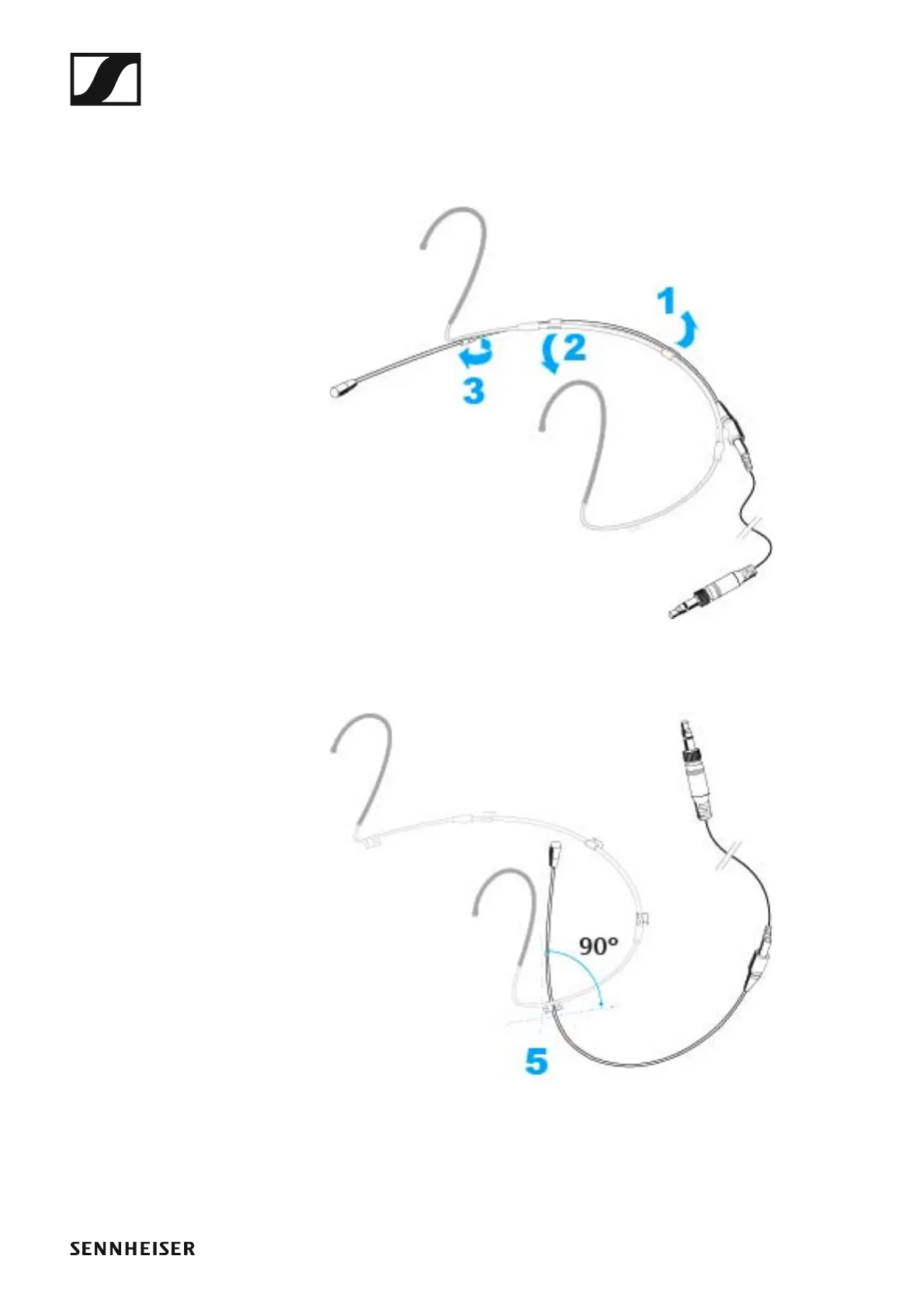

Modifying the microphone boom

To remove the microphone boom:

▷ First remove the microphone boom from the two clips 1 and 2.

▷ By turning the microphone boom, remove it from the third clip 3.

To reattach the microphone boom:

▷ First attach the end of the microphone boom where the microphone

capsule is fitted to the clip 5 on the desired side of the neckband.
