SL Rack Receiver DW

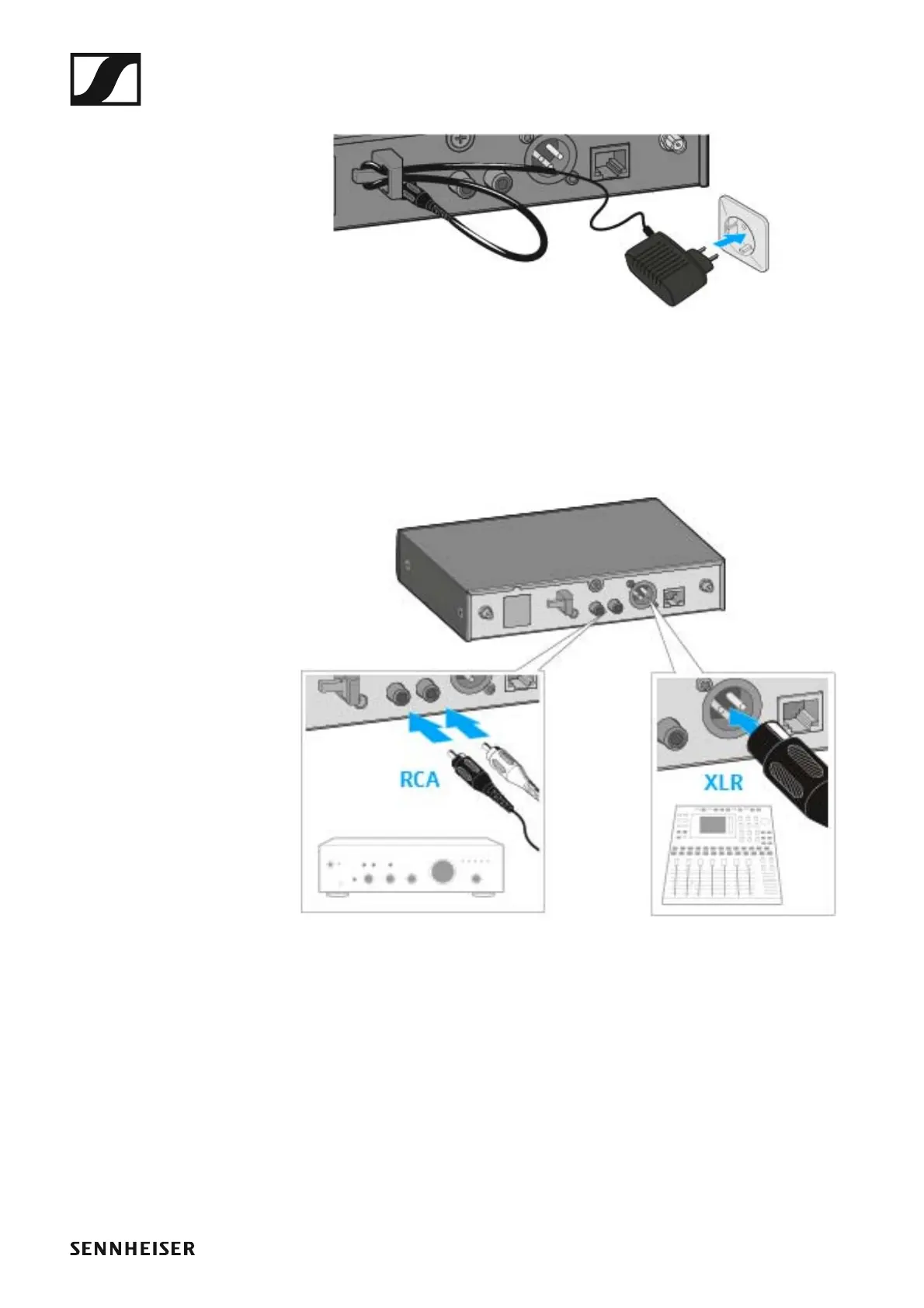

▷ Plug the power supply unit into the wall socket.

►

Connecting an amplifier or mixing console to the receiver

The unbalanced audio output (RCA) and the balanced audio output (XLR) at

the rear of the receiver are connected in parallel, allowing you to simulta-

neously connect two devices (e.g. amplifier and mixing console) to the re-

ceiver.

►

Use a suitable audio cable to connect the amplifier or the mixing console

to the appropriate audio output of the receiver.

We recommend using the balanced audio output (XLR) because balanced

cables are less prone to interference than unbalanced cables.
