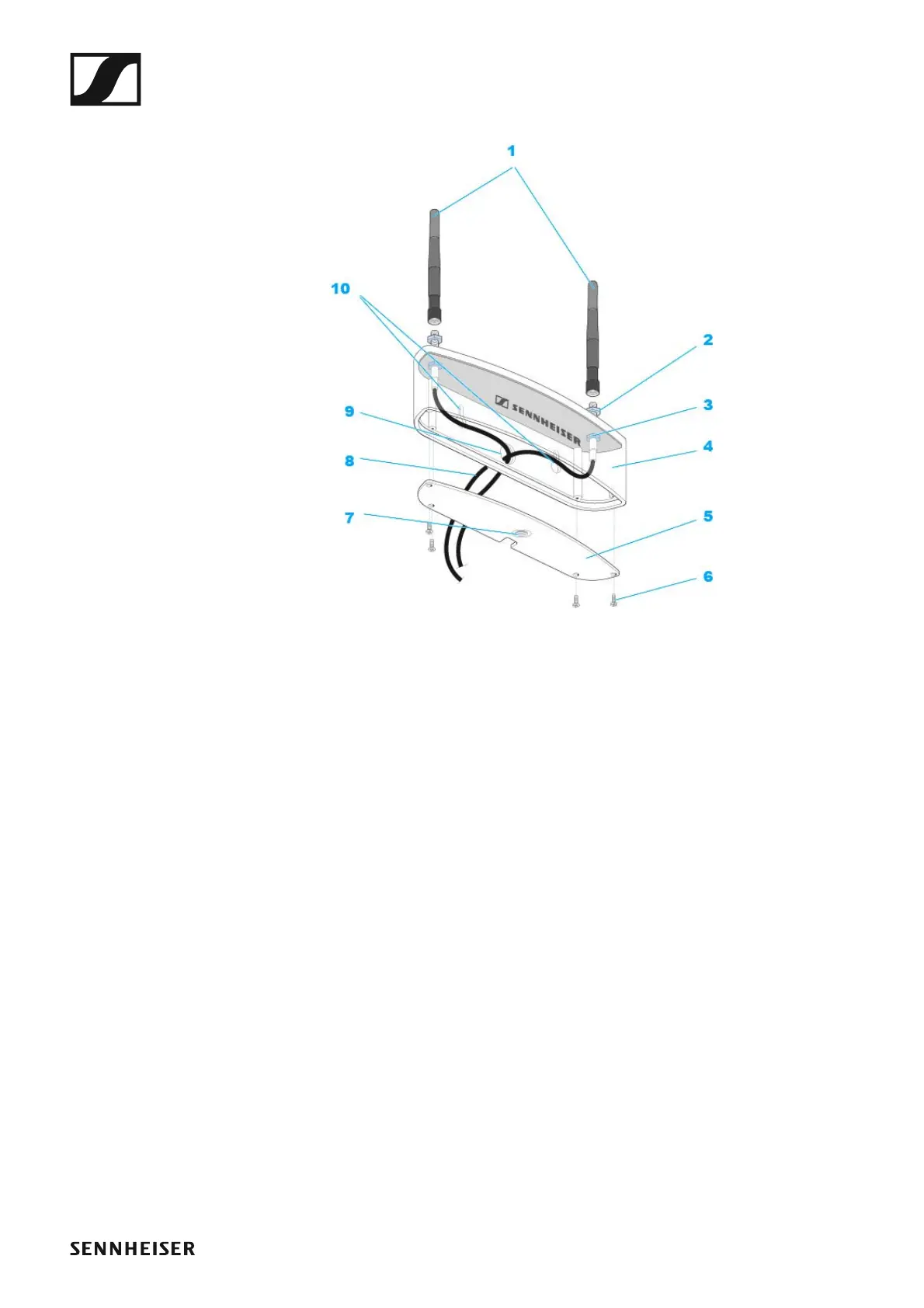

The AWM 2 antenna wall mount

171

Product overview

►

1 Rod antennas

• for connection to the R-SMA sockets at the top of the antenna wall

mount

2 R-SMA sockets of the antenna cables

• Antenna inputs for connecting the rod antennae

3 Antenna holes

• for screwing the R-SMA sockets of the antenna cables in place

4 Antenna housing

• for antenna cable routing

5 Screw-down cover of the antenna housing

• removable for mounting and antenna cable routing

6 4 recessed head screws

•for screwing down the cover

7 Internal thread

• for attachment to a microphone stand

8 R-SMA cables

• fitted with an R-SMA socket and an R-SMA connector, supplied

complete with washer and nut

9 Cable hole

• for wall mounting

10Elongated mounting holes

• for wall mounting
