The SL DI 4 XLR Dante™ interface

141

Powering the SL DI 4 XLR

There are two options to power the SL DI 4 XLR.

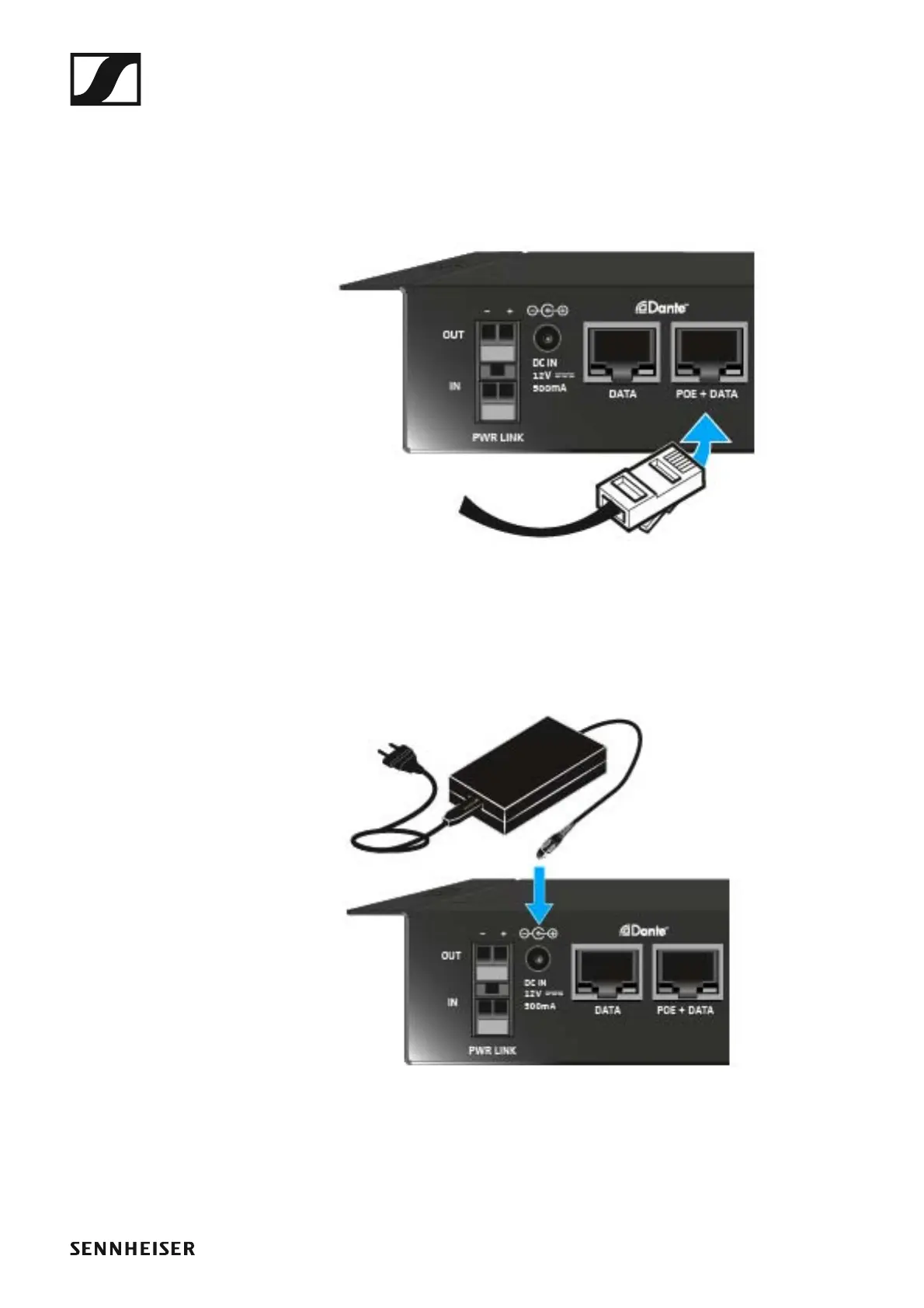

Power supply via Ethernet cable

To power the SL DI 4 XLR via Ethernet:

►

▷ Use an Ethernet cable (CAT-5 or higher) to connect the POE + DATA

socket of the SL DI 4 XLR to a PoE port of a PoE-enabled network de-

vice.

The POWER LED lights up when the power supply is established.

Power supply via the optional Sennheiser NT 12-50CS power supply unit

To power the SL DI 4 XLR via the optional NT 12-50CS power supply unit:

►

▷ Connect the NT 12-50CS power supply unit to the DC IN socket of the

SL DI 4 XLR.

The POWER LED lights up when the power supply is established.
