The CHG 4N charger
156

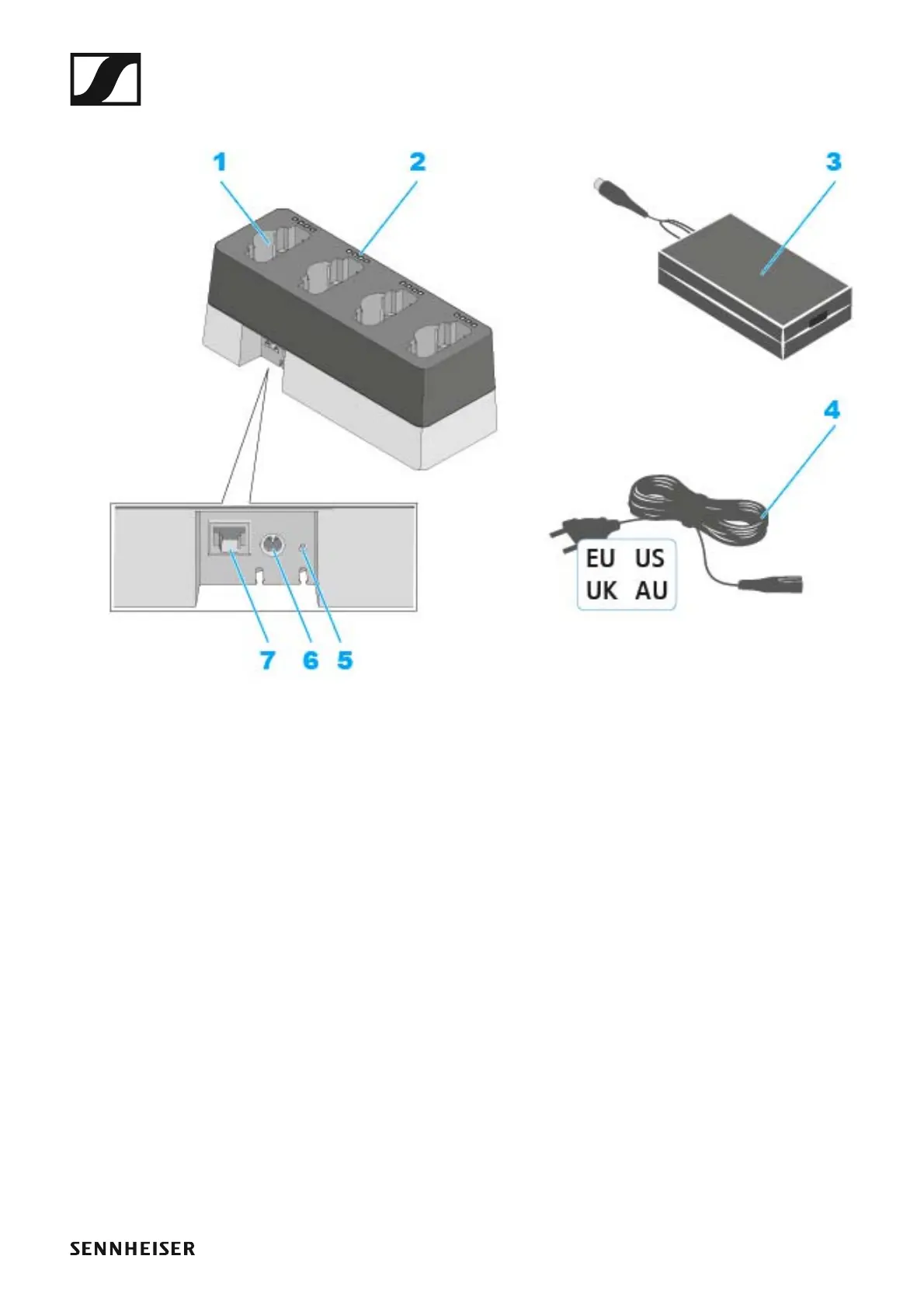

Product overview
►
1 Charging slots
• Suitable for both SL Handheld DW and SL Bodypack DW
2 Charge level LEDs
• See „Meaning of the charging slot status LEDs”
3 Power supply unit
• With hollow jack plug for connection to the CHG 4N charger
4 Power cord
• EU, US, UK or AU variant
5 Network reset button
• See „Controlling and monitoring the CHG 4N charger over the net-
work”
6 Input socket for power supply unit
• See „Connecting the CHG 4N charger to the power supply system”
7 Ethernet socket
• See „Controlling and monitoring the CHG 4N charger over the net-
work”
