SL Rack Receiver DW
72

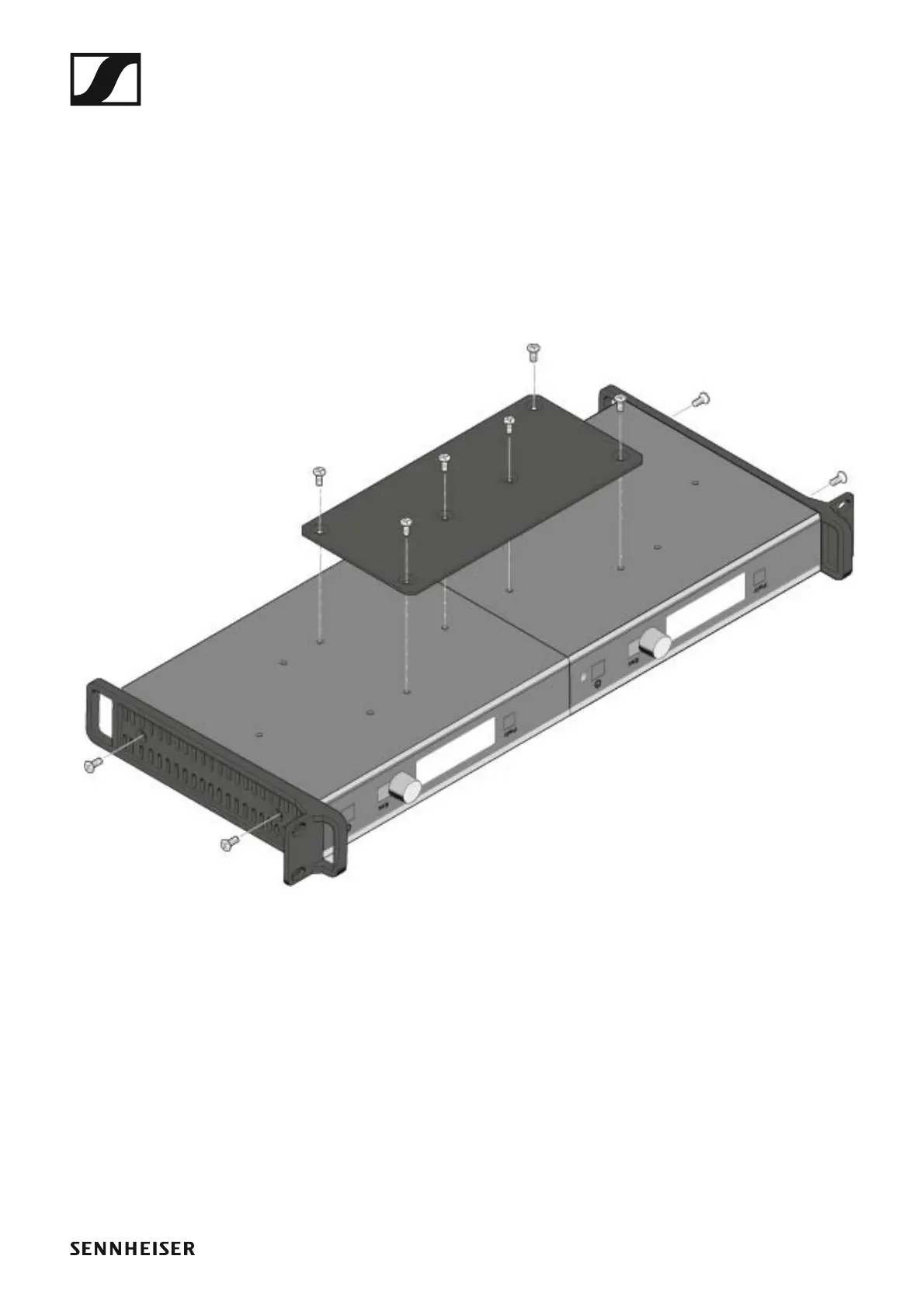

Mounting the jointing plate and the mounting angles
To fasten the mounting angles:
▷ Unscrew and remove the two recessed head screws on the outward-
facing sides of the receiver.
▷ Secure the mounting angles to the outward-facing sides of the receiver
using the previously removed recessed head screws.
To mount the jointing plate:
▷ Place the two receivers side by side upside-down onto a flat surface.
▷ Secure the jointing plate to the receiver using the six recessed head
screws as shown.
►
Connecting the AWM 2 / AWM 4 remote antenna to the receiver
Instead of the supplied rod antennae, you can also connect a remote anten-
na to the receiver. For more information, see „The AWM 2 antenna wall
mount” and „The AWM 4 antenna wall mount”.
▷ Pay attention to the notes about antenna installation under „Recom-
mendations on antenna mounting”.
