The CHG 4N charger

157

Connecting the CHG 4N charger to the power supply

system

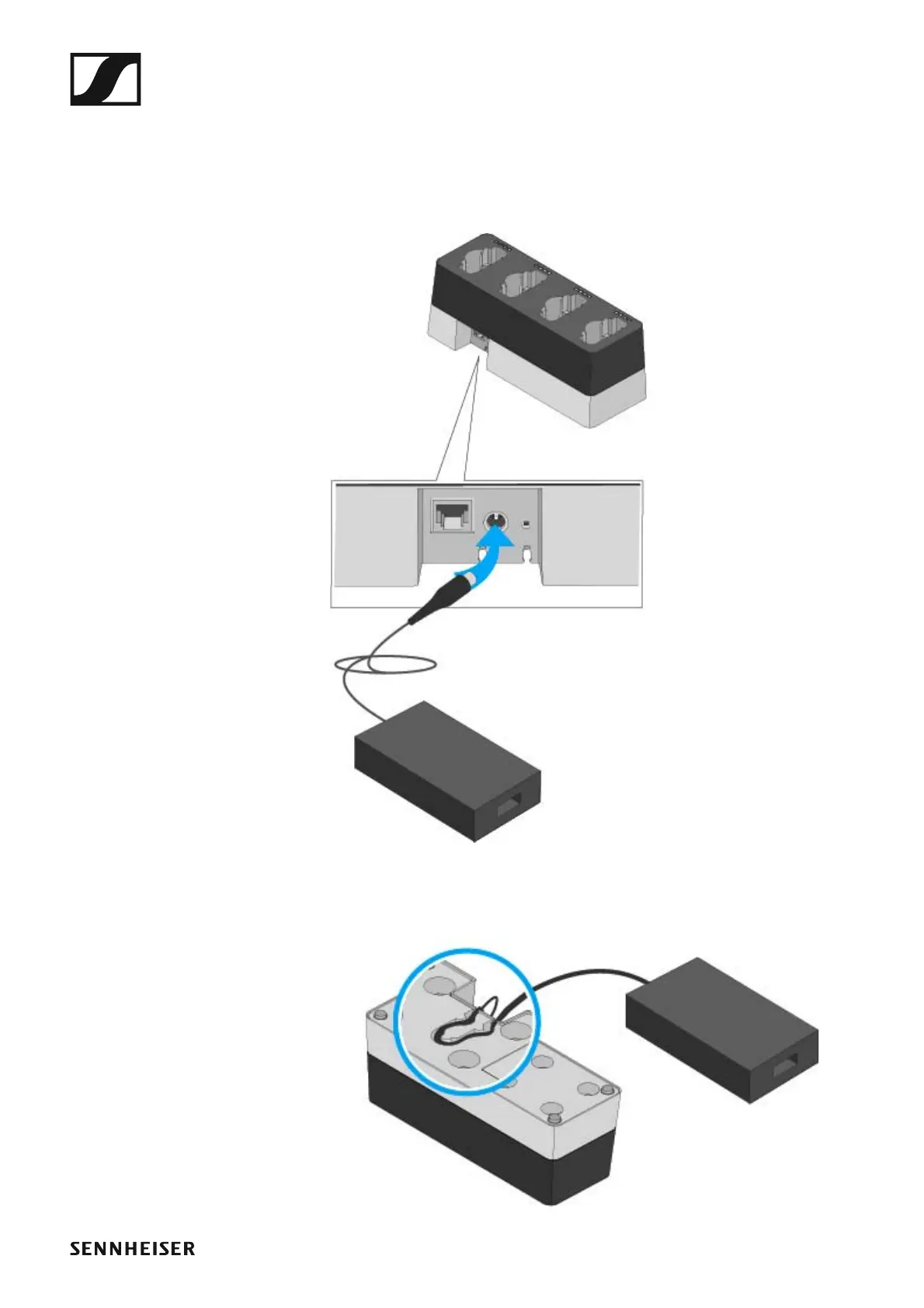

To connect the CHG 4N charger to the power supply system:

▷ Connect the cable end of the power supply unit to the socket at the

base of the charger.

►

▷ Guide the cable through the cable guide at the base of the charger so

that the charger is stable once in position.

►
