The AWM 2 antenna wall mount
173
observe a minimum distance of 160 mm between the top of the antenna
wall mount and the ceiling.
▷ If necessary, connect extension cables to the R-SMA sockets of the an-
tenna wall mount.
▷ Connect the R-SMA connectors to the R-SMA sockets of the receiver.
You can find additional information on possible setups using the
AWM 2 and general recommendations on antenna usage under „Rec-
ommendations on antenna mounting”.

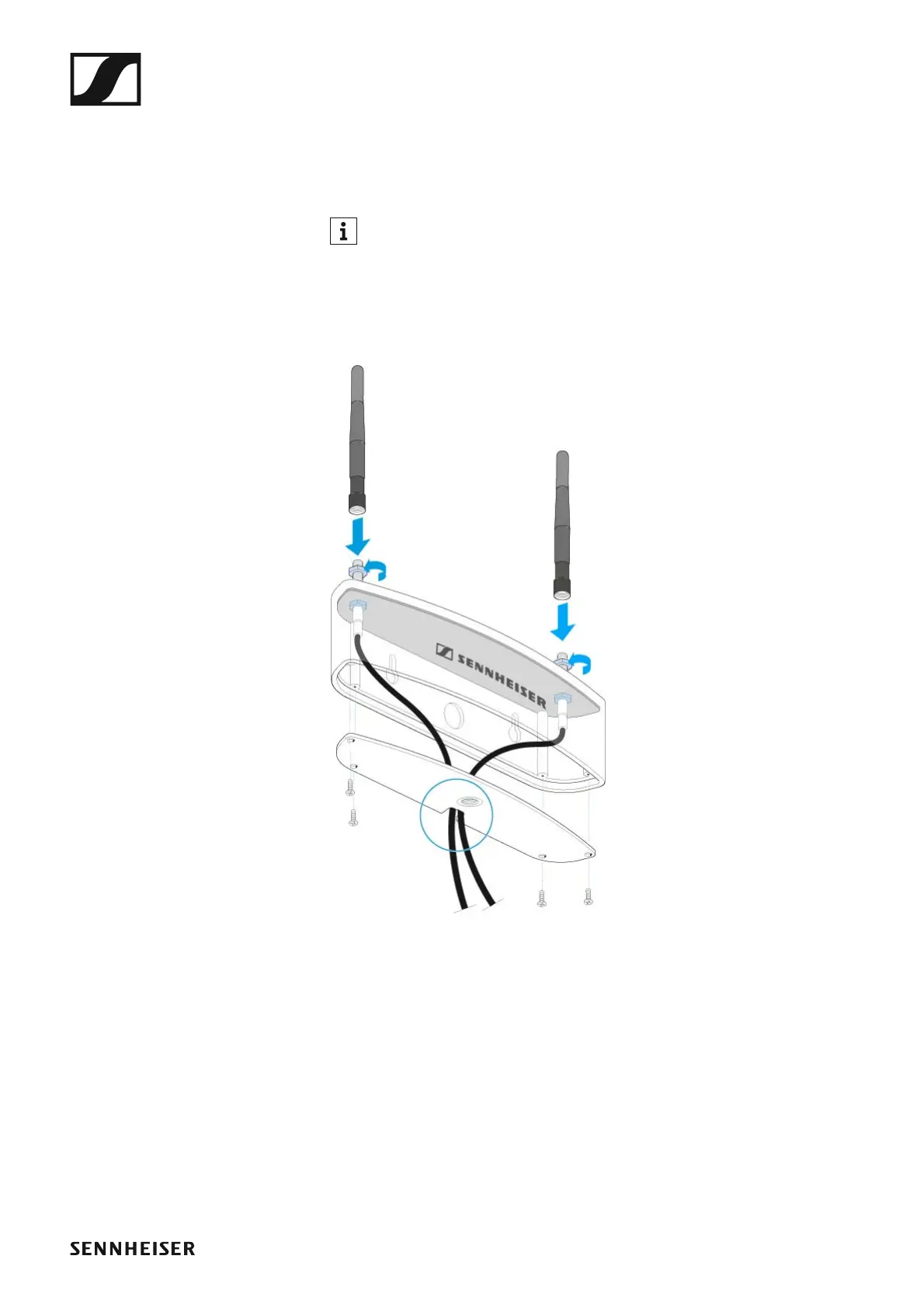

To mount the antenna wall mount to a microphone stand
▷ Pass the antenna cable ends fitted with the R-SMA sockets through the
cable notch provided at the rear bottom edge of the antenna housing.
►
▷ Do not kink the antenna cables and, when running the cables, make
sure not to bend them beyond a bend radius of 43 mm.
▷ Smaller bend radiuses can cause cracks and breaks in the cable, which
may not be visible from the outside. This can result in bad reception
quality.
▷ Screw the sockets to the antenna holes using the supplied washers and
nuts.
▷ Screw the cover back to the antenna housing. Observe correct cable
routing.
▷ Connect the two rod antennae of the antenna wall mount to the R-SMA
sockets.
▷ Use the elongated mounting holes to mount the antenna wall mount to
a wall or screw the antenna wall mount onto a microphone stand with
a 3/8" thread.
The antenna cables can be run from the rear panel of the antenna hous-
