Connecting the antenna cables
You can connect two receiver directly to the AWM 4.

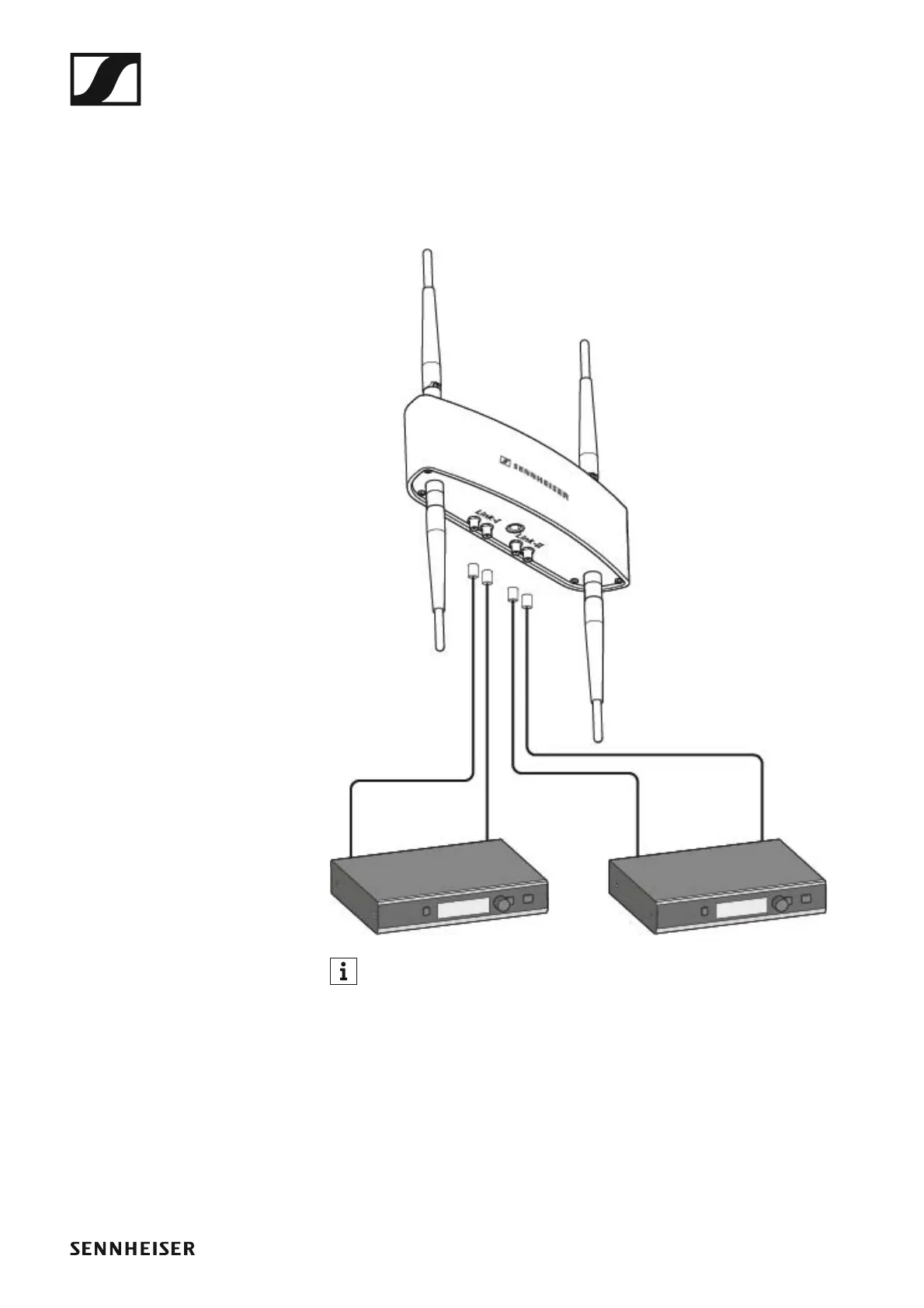

▷ Connect the two antenna outputs ANT I and ANT II of the first receiver
to the connections LINK I of the AWM 4.
▷ Connect the two antenna outputs ANT I and ANT II of the second re-
ceiver to the connections LINK II of the AWM 4.
►
You can find additional information on possible setups using the
AWM 4 and general recommendations on antenna usage under „Rec-
ommendations on antenna mounting”.
For direct connection of the receivers to the AWM 4, we recommend using
the following low-loss Sennheiser antenna cables:
•CL 1 PP
•CL 5 PP
•CL 10 PP
•CL 20 PP
These cables can be directly connected to the SL Rack Receiver DW and
the AWM 4 without the need for an adapter.
