The SL Bodypack DW
90

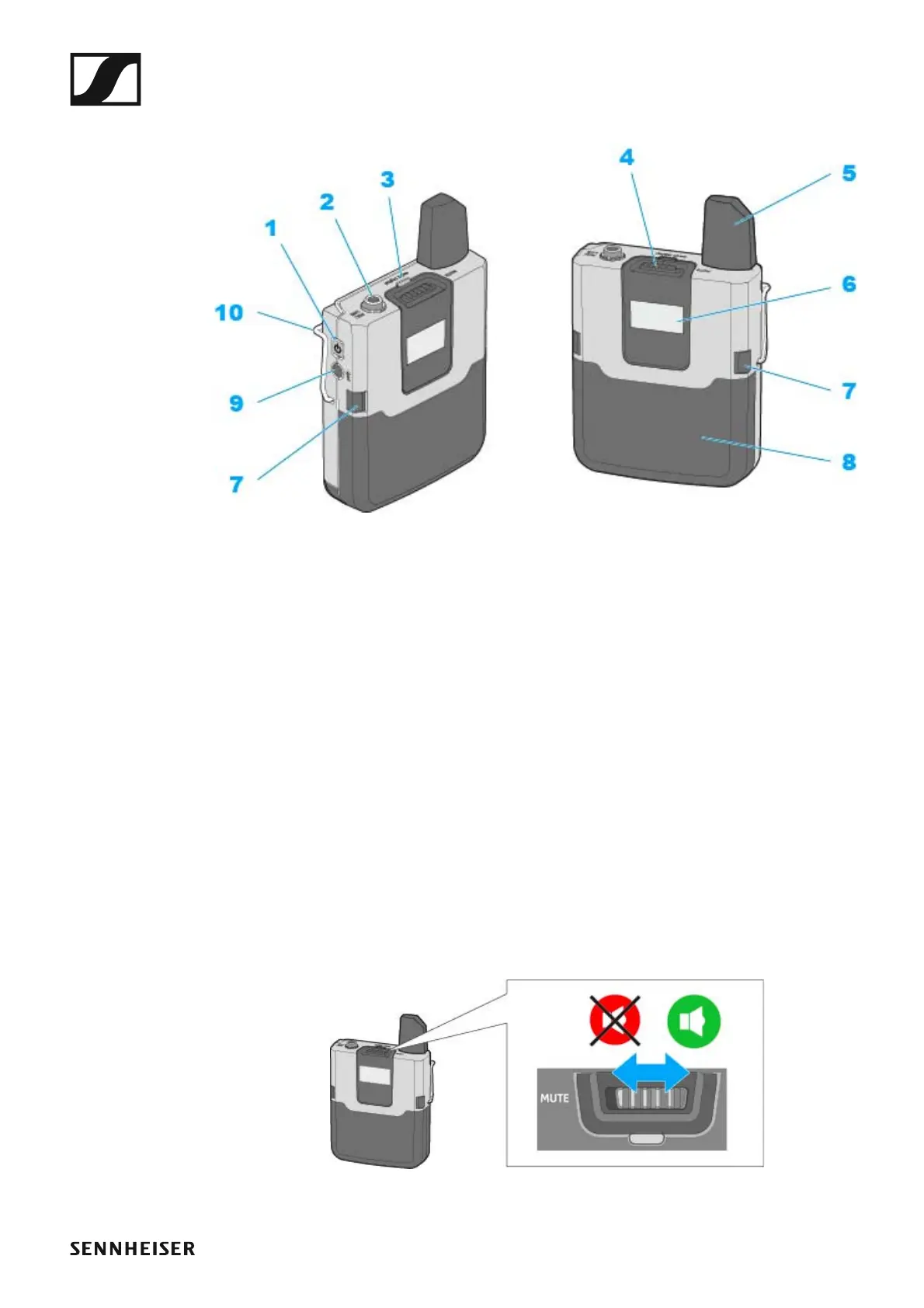

Product overview
►
1 ON/OFF button
• Short-press to switch the bodypack transmitter on
• Long-press to switch the bodypack transmitter off
2 MIC/LINE jack socket (3.5 mm)
• for connecting the clip-on or headset microphone
3 Status LED
• See „Meaning of the status LED on the bodypack transmitter”
4 MUTE switch
The bodypack transmitter can be muted with the MUTE switch. This only
mutes the audio signal. The radio link remains active and the transmitter
remains operational.
The MUTE switch can be deactivated in the System Settings menu of the
receiver. With the MUTE switch deactivated, the bodypack transmitter
cannot be muted.
To mute the bodypack transmitter:
▷ Slide the MUTE switch to the position MUTE.
Muted appears on the display panel of the receiver. The status LED on
both the bodypack transmitter and the receiver lights up yellow.
►
To cancel the muting:
▷ Slide the MUTE switch to the position MIC.
