The SL Tablestand 153-S DW

110

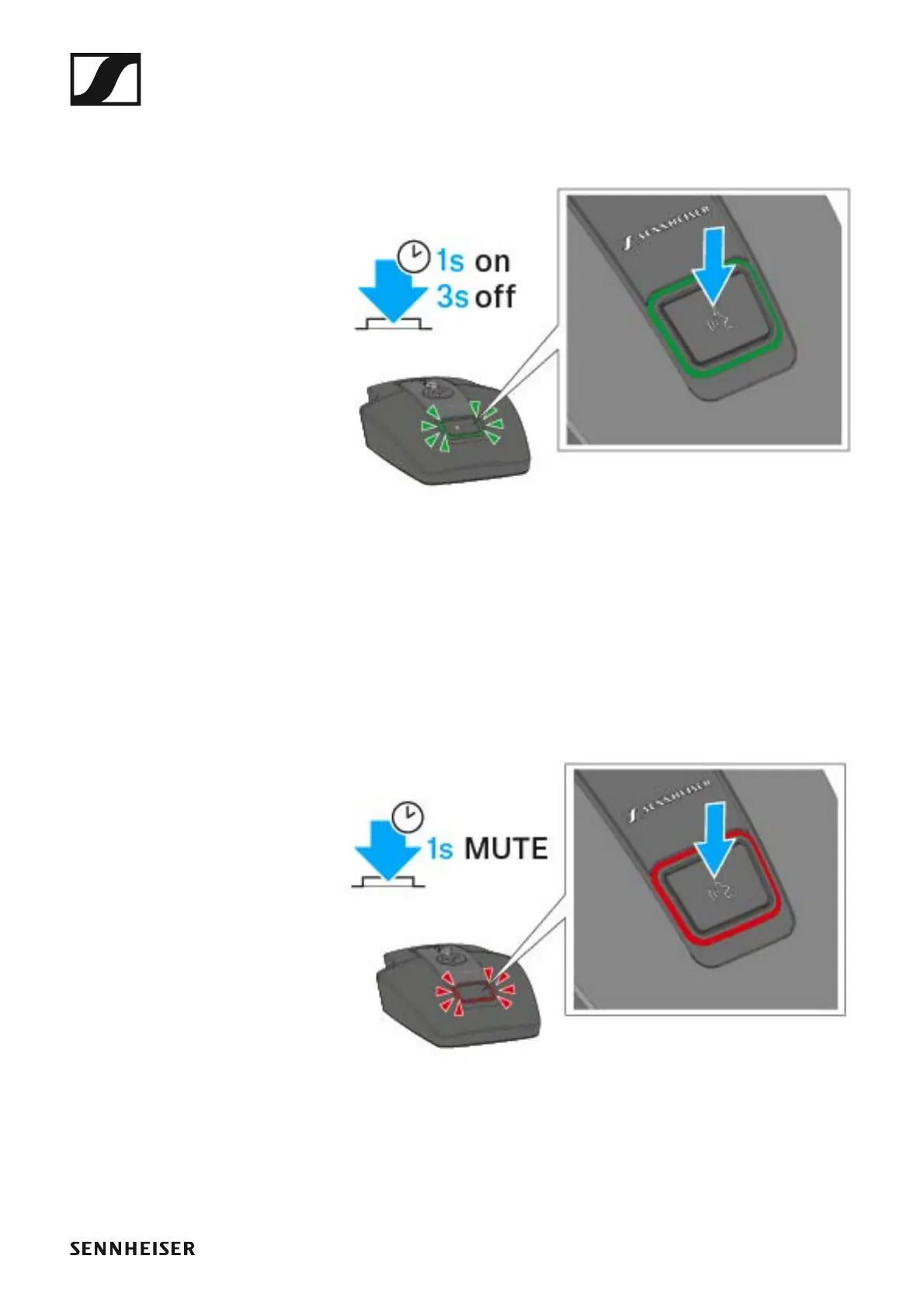

Switching the table stand on/off

To switch the table stand on:

►

▷ Press the ON/OFF button for 1 second.

The button lights up green when a goose neck microphone is connect-

ed.

To switch the table stand off:

▷ Press the ON/OFF button for 3 seconds.

Muting the table stand

To mute the table stand:

►

▷ While the table stand is switched on and a goose neck microphone is

connected, press the ON/OFF button for 1 second.

The button lights up red.
