The SL Headmic 1 headset microphone

132

Attaching the connection cable to clothing

The MZQ 02 cable clip is available as accessory.

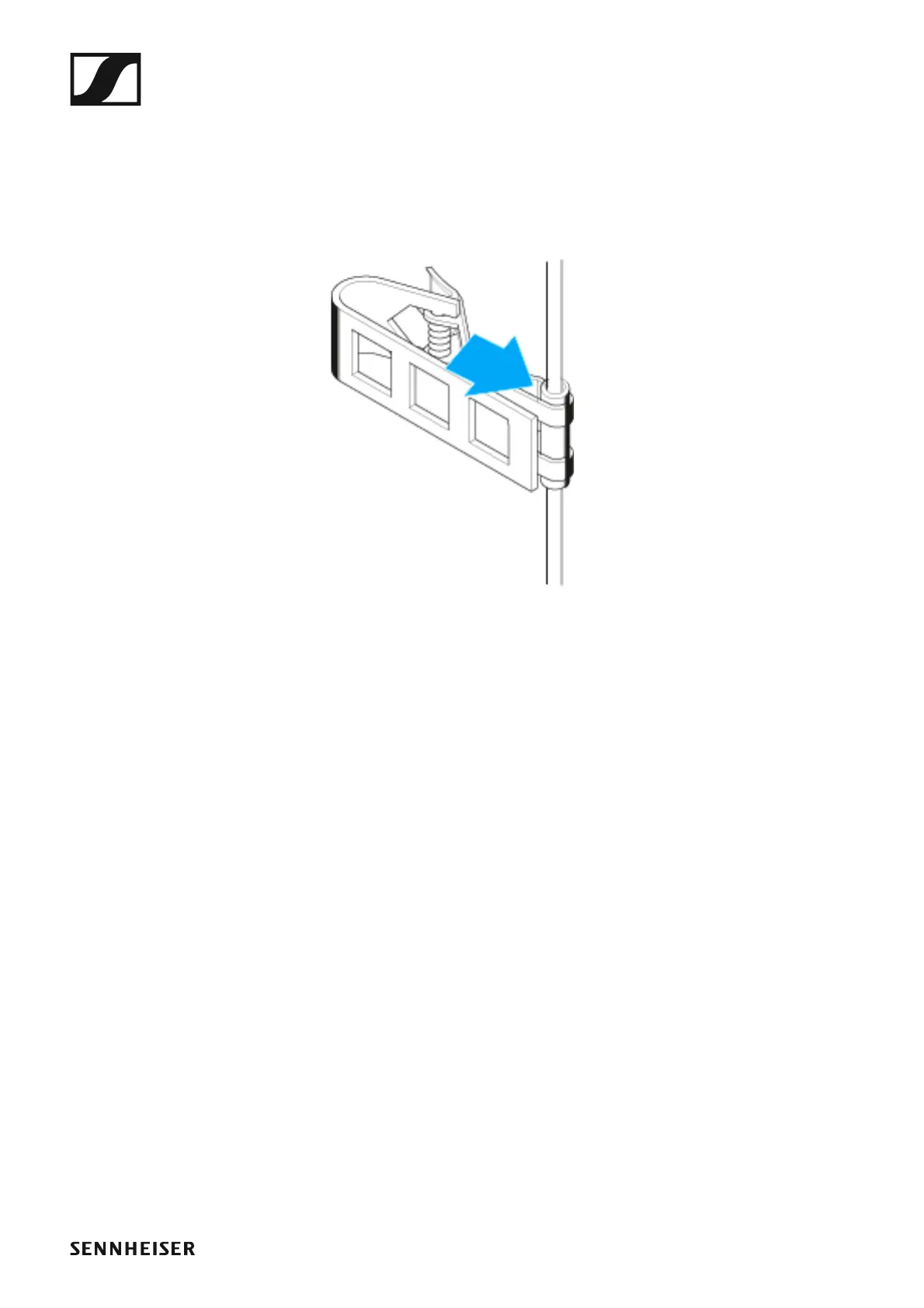

▷ Press the connection cable into the strain relief grip of the MZQ 02 ca-

ble clip.

▷ Attach the cable clip to the rear of your collar.

▷ Run the connection cable under your clothing.

►
