SL Rack Receiver DW

Connecting the receiver

Connecting the receiver to the power supply system

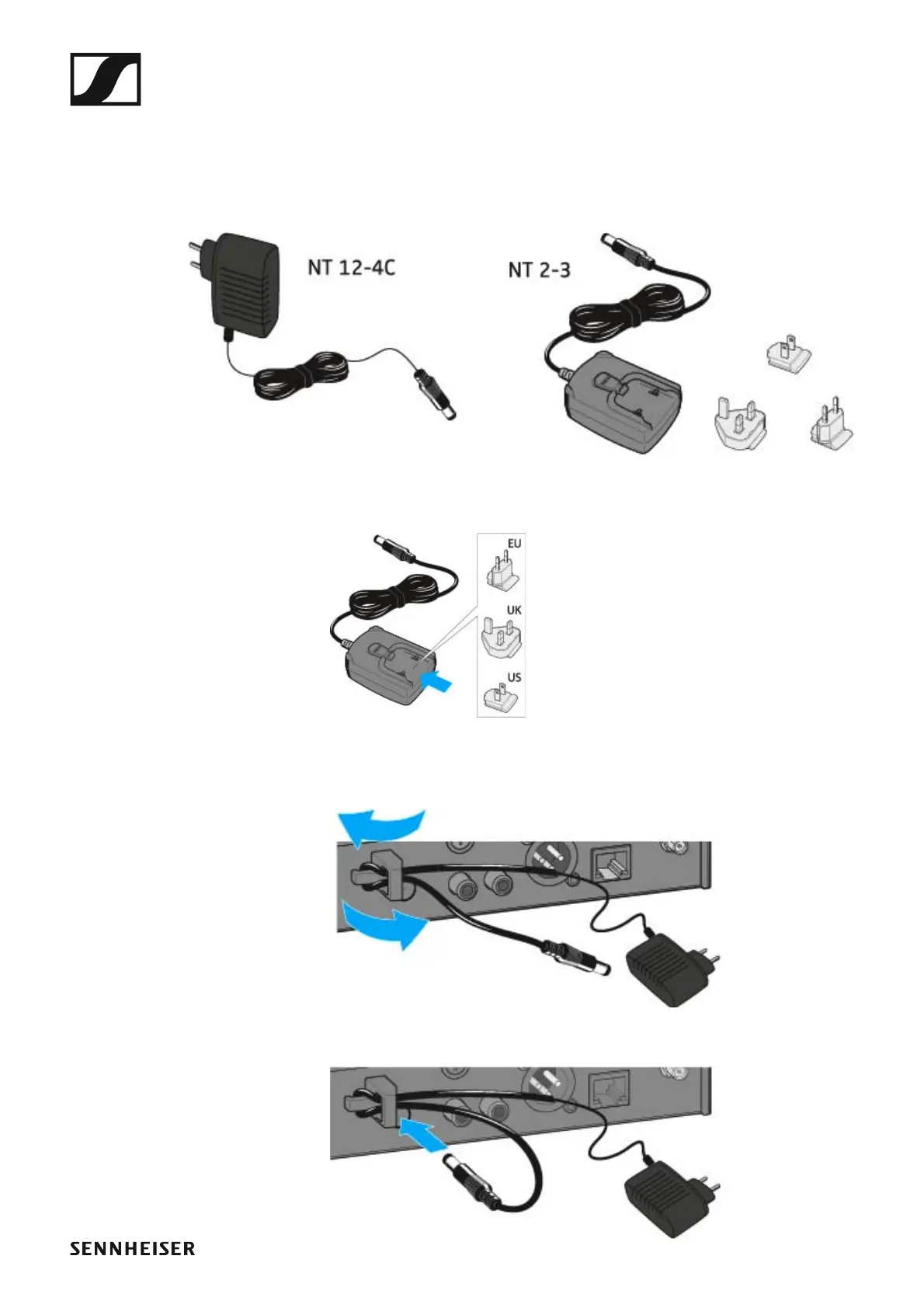

Only use the included power supply unit (NT 12-4 C or NT 2-3) to connect

the receiver to the power supply system.

►

If you use the NT 2-3 power supply unit:

▷ Slide the supplied country adapter onto the power supply unit.

►

To connect the power supply unit:

▷ Pass the cable of the power supply unit through the strain relief grip as

shown.

►

▷ Connect the hollow jack plug of the power supply unit to the DC IN

socket of the receiver.

►
