The SL Handheld DW

Using the handheld transmitter

If you touch the antenna of the handheld transmitter during transmission,

the transmission range will be considerably reduced. If you cover the mi-

crophone capsule during transmission, this will change the pick-up pattern

of the microphone and consequently the sound.

►

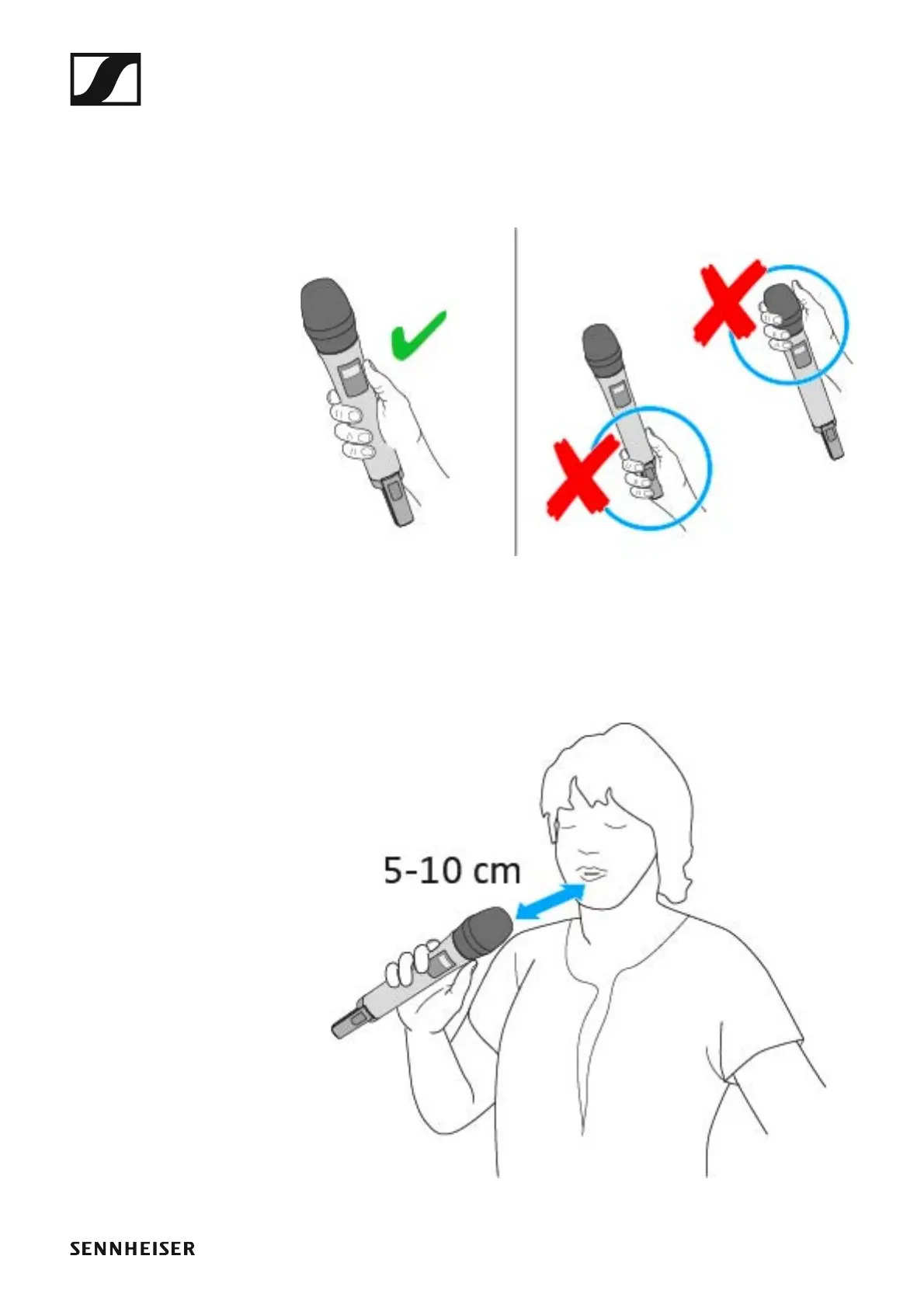

▷ Only hold the handheld transmitter by its body.

▷ Hold the handheld transmitter approx. 5 to 10 cm in front of your mouth.

The MME 865-1 microphone capsule has a super-cardioid pick-up pattern.

▷ Hold the handheld transmitter vertically and speak into the sound inlet

basket from directly above.

►
