The CHG 2 charger

152

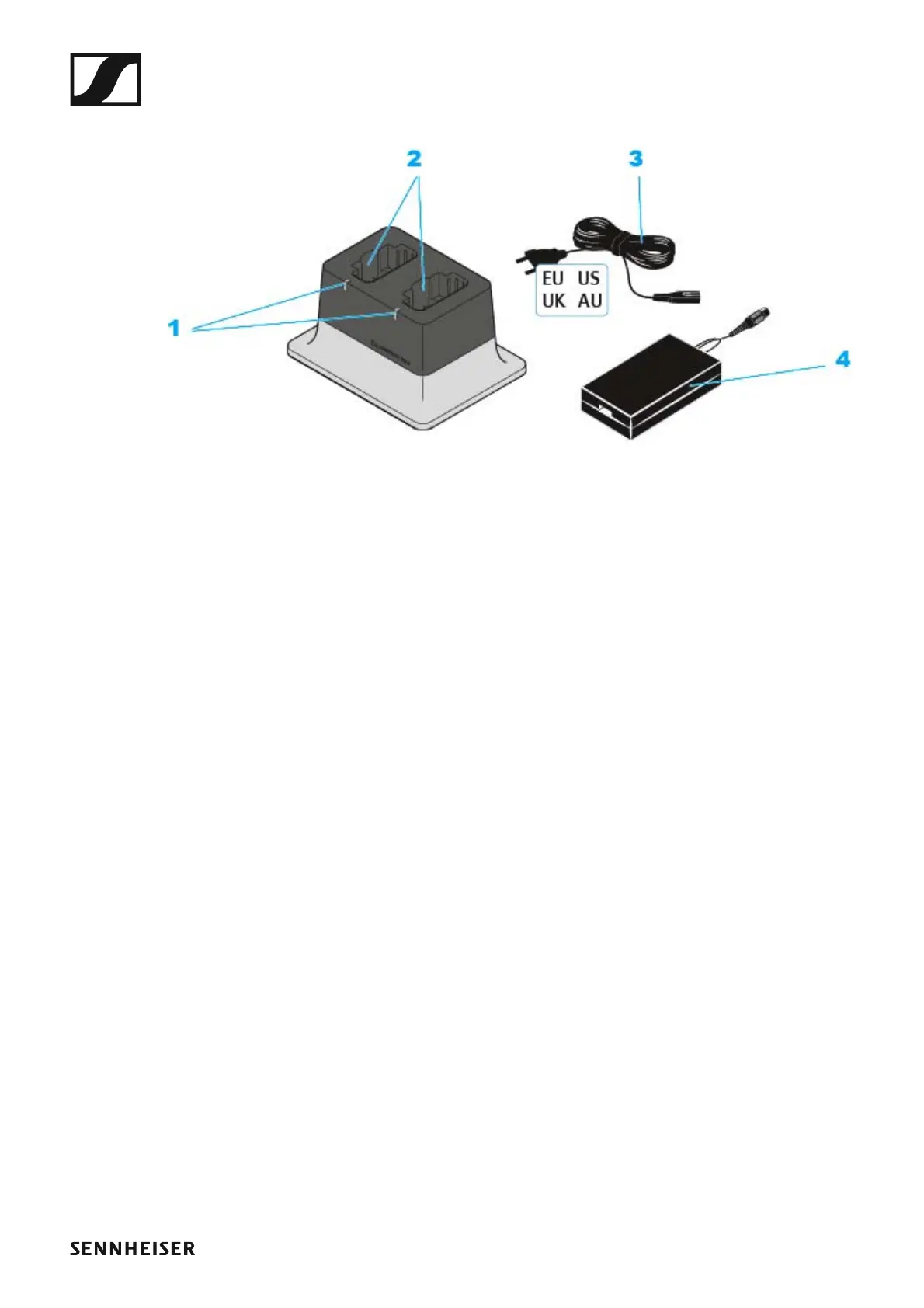

Product overview

►

1 Charge level LEDs

• lights up green: The accupack is fully charged.

• lights up red: The accupack is being charged.

2 Charging slots

• each suitable for SL Handheld DW and SL Bodypack DW

3 Power cord

• EU, US, UK or AU variant

4 NT 12-50CS power supply unit

• with hollow jack plug for connection to the CHG 2 charger
