SL Rack Receiver DW

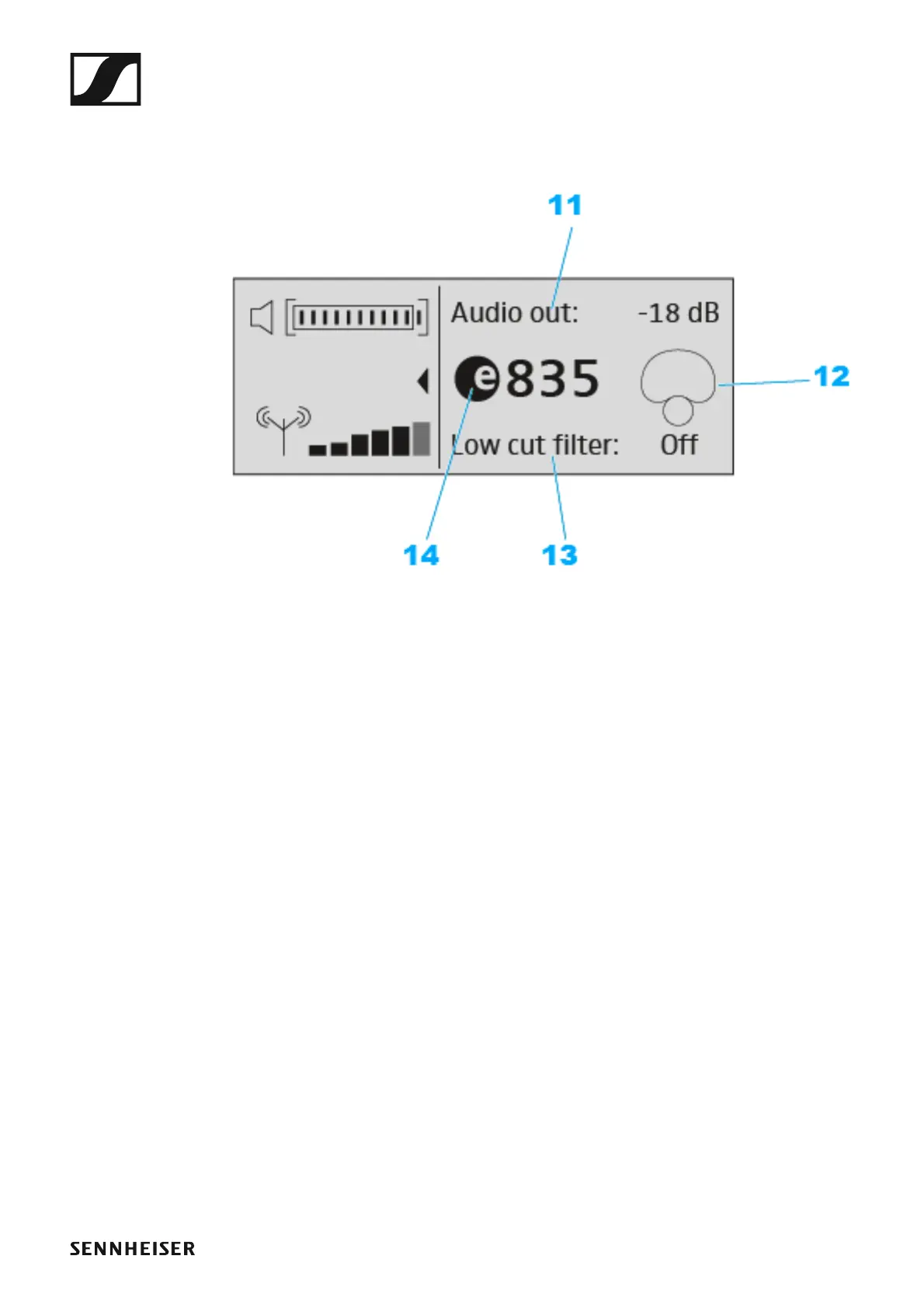

Secondary home screen

When you turn the jog dial to the left from the home screen, the secondary

home screen appears.

►

11Audio output level of the receiver

12Pick-up pattern of the microphone used

13Status of the low-cut filter (ON/OFF)

14Product name of the microphone capsule used
