SL Rack Receiver DW

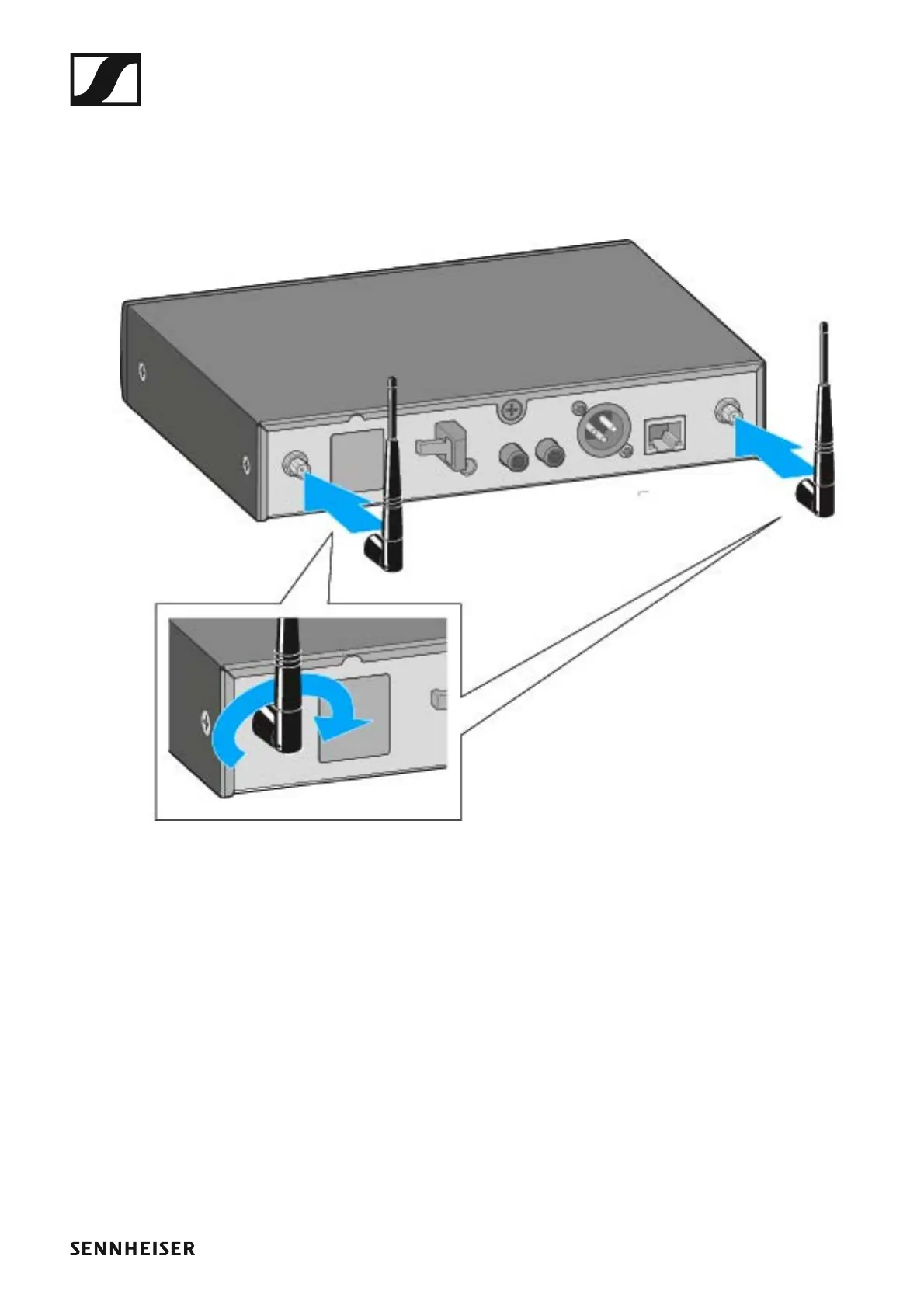

Connecting the rod antennae to the receiver

To connect the supplied rod antennae to the receiver:

▷ Screw the two rod antennae into the receiver's two antenna sockets,

ANT I and ANT II, as shown.

▷ Align the rod antennae vertically.

►

Connecting the AWM 2 / AWM 4 remote antenna to the receiver

Instead of the supplied rod antennae, you can also connect a remote anten-

na to the receiver. For more information, see „The AWM 2 antenna wall

mount” and „The AWM 4 antenna wall mount”.

▷ Pay attention to the notes about antenna installation under „Recom-

mendations on antenna mounting”.
