The SL DI 4 XLR Dante™ interface

145

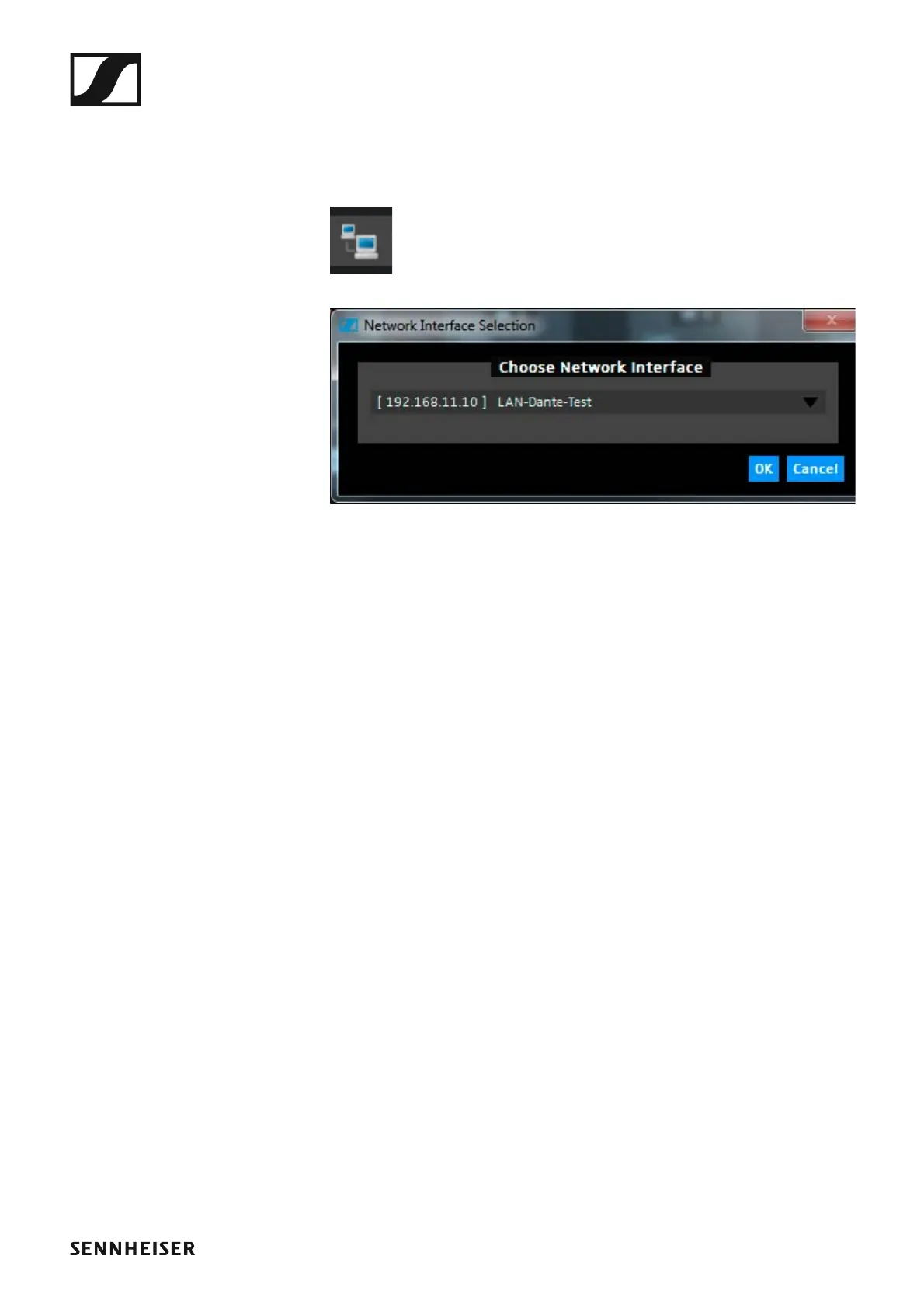

Selecting the network interface

If you have a network with several interfaces, you can select the network

interface:

▷ Click on the network icon on the left of the navigation bar.

►

▷ Select the desired network interface.

►

▷ Click on OK.
