The SL Headmic 1 headset microphone

129

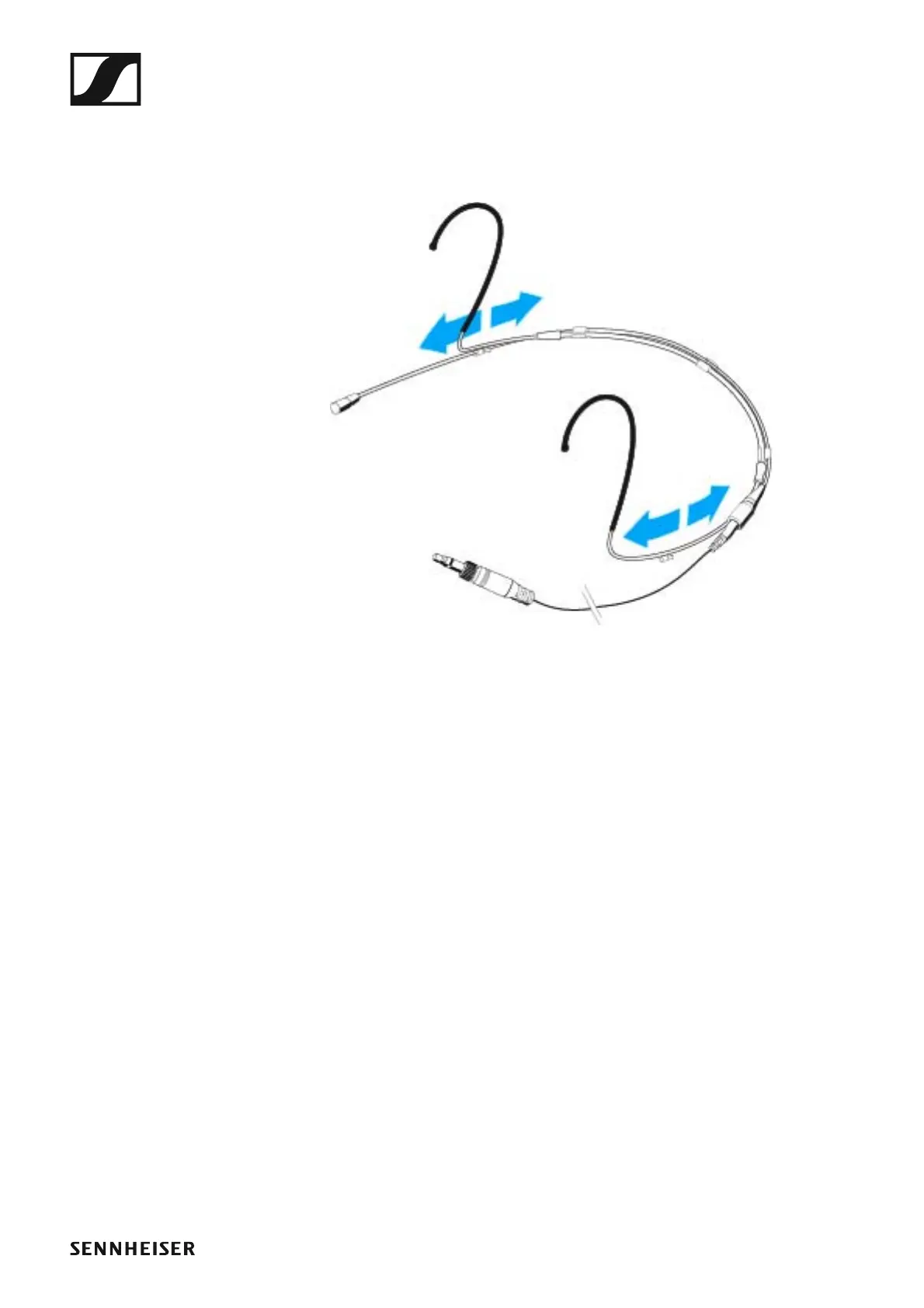

Adjusting the neckband

The neckband is adjustable in width and ensures an optimum fit.

▷ Change the length of the neckband by moving the ear hooks until a

snug but comfortable fit is achieved.

►
